So here we go, I'm letting it all out of the tank with this one. Starting with the Aoshima FJ40 hardbody (no Bushwhacker for me) :banana: and a BB-51 chassis. The fit is amazingly good, like they were made for each other:

Posted Image

Only about 3/4 inch of the frame shows below the rocker panels. I'm keeping the full interior.

Posted Image

Painted the body Tamiya AS-14 Olive Green (no more short-bus yellow) and did the grille in white.

Posted Image

Added some body armor:

Posted Image

Since I'm using all the interior, there's no room for even a compact tranny like an R2 with an outrunner, so I decided to use a divorced t-case and GD-600. The t-case is a cut-down Pede tranny with a Jato input shaft, coupled to the GD with TLT cups and bones:

Posted Image

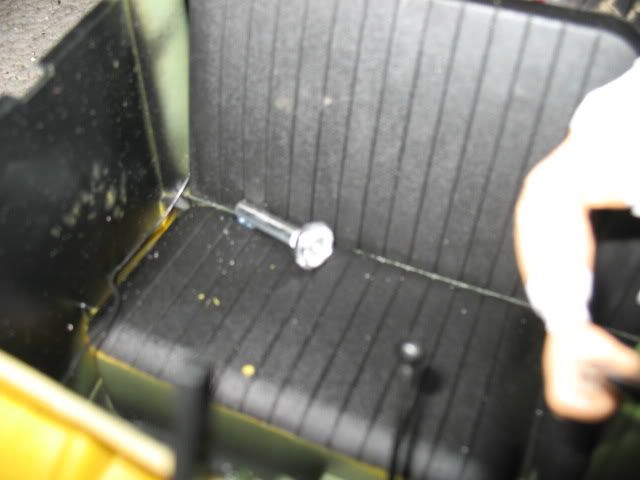

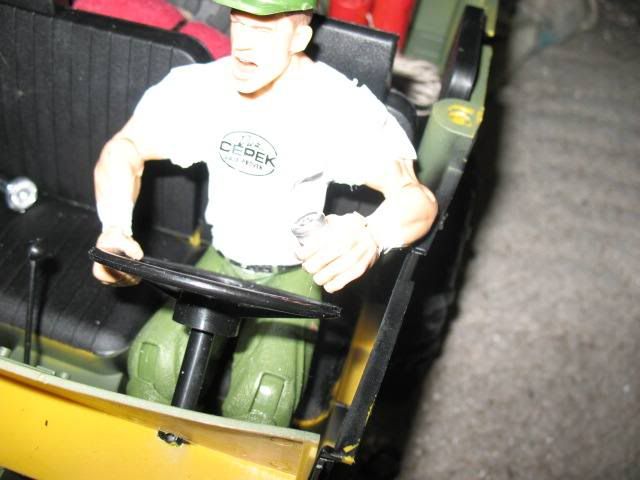

Converted the dash to left-hand drive and moved the wipers to below the windshield, and made a t-shirt for the driver. He seems upset about something.

Posted Image

And no FJ would be complete without the frame poking out the front, so I made an extension and front bumper, with tow hooks out of brass.

Posted Image

Axles will be RC4WD T-Rex 60's, tires are Geolandars, wheels to be named later.

Much more to come. Stay tuned.
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

EeePee
Member Avatar
NOSTR Member
[ *  *  *  * ]
Saw this on the other boards, and didn't comment.

I figured I'd save the comments for this place.

And with that I have this to say, awesome so far Stu!
old_dog

One of the greatest pleasures I have in life is "letting" PeePee finish better than me at a comp. Trust me, this is difficult to do.
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
i had a dog that ate a big rock once i think was making a face like that when it came out could be the same problem.
i like the green trucks looking sweet.
how did you make the tshirt i got to do that myself i am no sewer. maybe i can staple the a shirt togther.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
The T-shirt is made from silkspan paper, used to cover model airplanes. It's cut in two parts, glued on with CA and painted with Faskolor. The Faskolor makes it shrink a little and conform some to the body. Enough to make it look like a T-shirt anyway.

Gotta upload some more pics to imageshack, I did more cool stuff last night.
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
i thought the material looked thin good idea.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Well, here's a little update.

Made a swing-out tire/jerry can rack, with a tethered pin so I don't lose it on the trail.

Posted Image

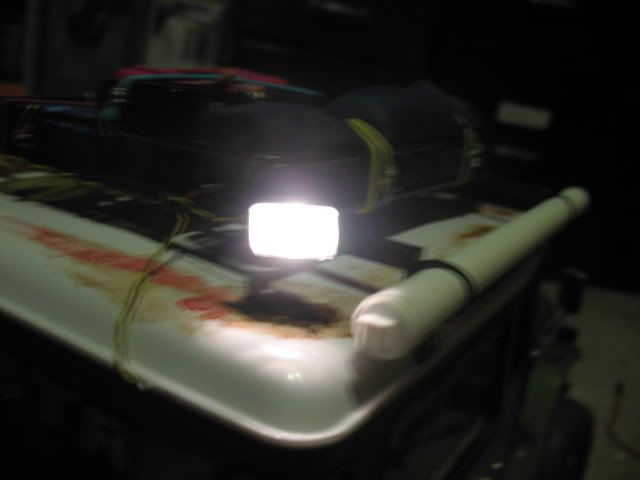

Then I whipped up a luggage rack, with reverse lights.

Posted Image

Then just for giggles, I turned down some TLT shocks, made some sleeves with brass tube, and painted them white:

Posted Image

Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]

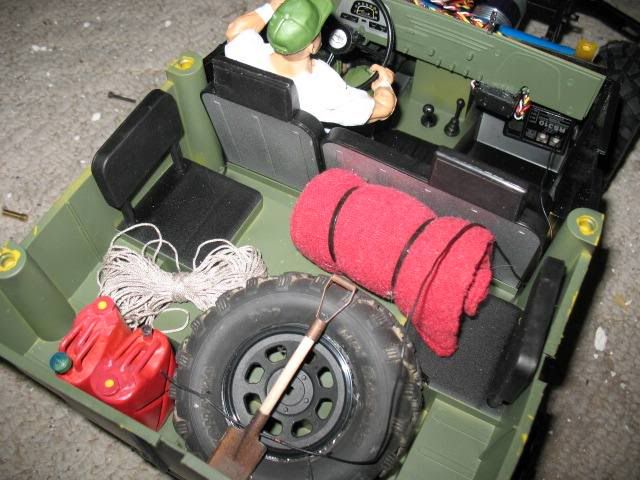

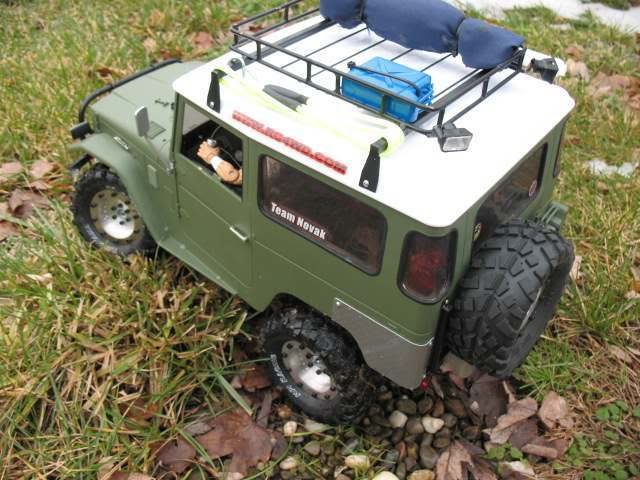

Painted the luggage rack and loaded it up with a tent (tire foam wrapped in nylon) and a water can.

Posted Image


Next up is a carbon-fiber canoe :banana:
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
carbon fiber canoe? that should make a sweet smashing sound :poke:
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Three layers of cloth (inner is a carbon-Kevlar weave) and four ounces of resin. This may be the strongest part of the rig:

Posted Image

Then, I added some 4-inch PVC pipe to stash my fishin' pole in:

Posted Image

And, I got some wheels from createacrawler. These are without a doubt the awesomest wheels I've ever used :banana:

Posted Image

They're a modular wheel, so I can change up the backspacing, offset and overall width to suit my whim. Troy was kind enough to include some extra wheel halves.
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

shadow
NOSTR Newbie
[ *  * ]
nice, love the shocks.
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Well, I got sick of waiting for the T-Rex axles, so I rolled a set of spares (Hi-Lift front, TLT rear with lockouts) under it and started to roll on this thing before I forget I own the thing.

Posted Image

Axles go under, with a mostly-parallel 4-link that frankly I don't like, but there's no room for anything else up front (maybe a Panhard bar) and I chopped the link mounts off the rear so deal with it. The inboard shocks (TA02's pictured here in the back, when I thought I had springs that were strong enough to hold this hog; I've since changed back to the TLT-KYB's in a droop setup). The links are weak, 4-40 allthread just isn't up to a 20-pound rig with a brushless motor. Anyone want a steel pretzel? I got 8 of 'em :banana:

Posted Image

Junk in da trunk. The receiver is under the dash, along with a servo (the one that looks like a CB radio) to turn the steering wheel when the wheels turn. But it doesn't work; it just binds up. Gotta make a real steering column next time I take it apart.

Posted Image

Drinking and driving's bad, mmm'kay?

Posted Image

All the flex it's got

Posted Image

Scale flashlight made from a model-car headlight and some chrome sprue

Posted Image

The swing-away, does.

Posted Image

Outside, it drives pretty nice. It's no crawler, with a severe rear weight bias, too much weight up top and high gearing, but it's a lot of fun to wheel. Not as tippy as I feared, and fast enough to be entertaining :banana:

Posted Image

You can't really tell, but the headlights are on. A separate 6V pack runs them.

Posted Image

Yay, I found some mud!


Coming soon to a trail near you.
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
thats nice I like it alot.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

HALF~DEAD
Member Avatar
listen its been real swell,but the swelling has gone down
[ *  *  *  *  *  * ]
man that is freekin cool
KNUCKLE UP
Offline Profile Quote Post Goto Top

nataliemorgan
Member Avatar
VDub Luftwaffe Pilot
[ *  *  *  *  *  *  *  *  *  *  *  * ]
nice!!!!!!!!!!!!!
<a href="http://photobucket.com" target="_blank"><img src="http://i227.photobucket.com/albums/dd35/nataliemorg/NOSTR.jpg" border="0" alt="Photo Sharing and Video Hosting at Photobucket"></a>+Death From ADub+
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Time to show the piggy a little lovin' :banana:

Posted Image

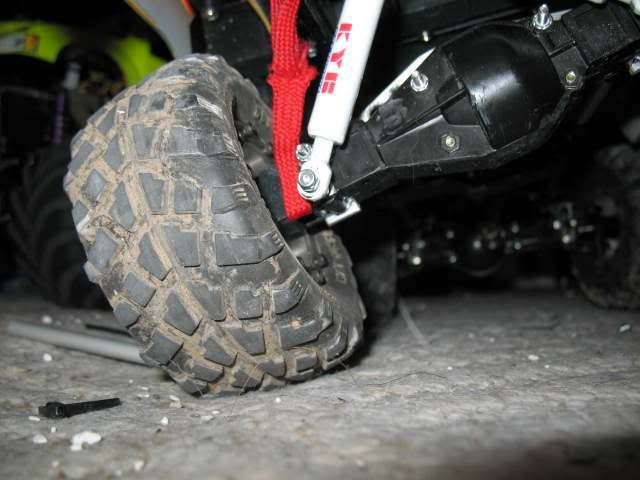

Added limiting straps (charity red shoelaces I got at the London Marathon) :D so the tires don't bind up in the wheelwells anymore.

Posted Image

Now there's a little clearance, and the thing can actually move as the suspension cycles. Still plenty of flex as you can see.

Posted Image

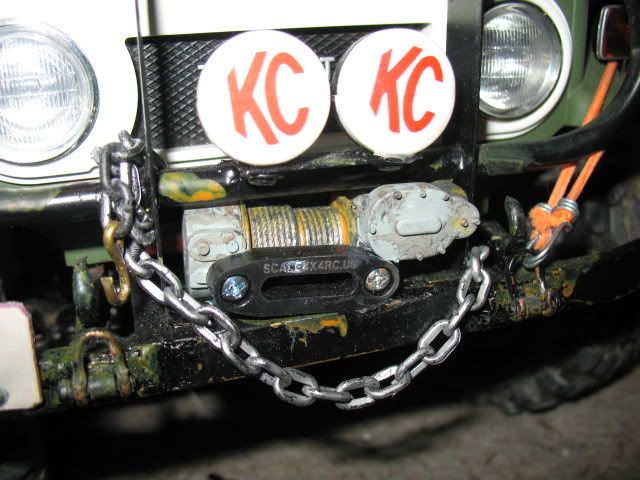

Added a Wild Willy winch with one of EtypeR's delrin fairleads. I'll add a servo next time I take the body off, which is a major operation.

Posted Image

Bungee cords and toolbox

Posted Image

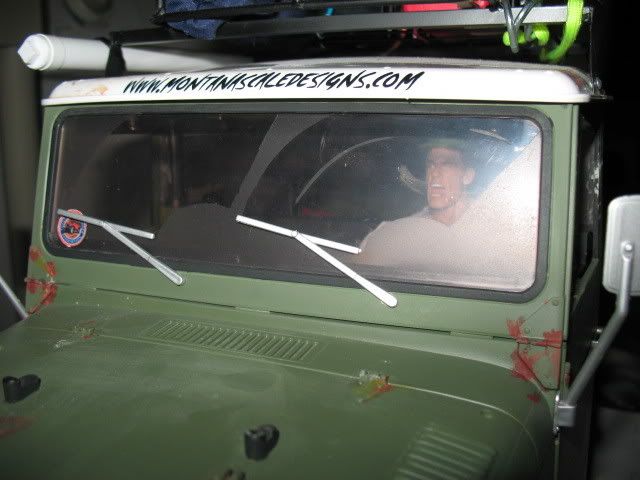

Shot a little flat clear on the windshield. Looks like I need a new wiper blade :D
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
keeps gettin better stu
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

nataliemorgan
Member Avatar
VDub Luftwaffe Pilot
[ *  *  *  *  *  *  *  *  *  *  *  * ]
thats what you get for driving through overspray, funny how it didnt get on your hood??? lookin niccccccccccce!
<a href="http://photobucket.com" target="_blank"><img src="http://i227.photobucket.com/albums/dd35/nataliemorg/NOSTR.jpg" border="0" alt="Photo Sharing and Video Hosting at Photobucket"></a>+Death From ADub+
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Fat girls need love too, time to hit it again.

Posted Image

Servo behind the dash with a Y-harness into the throttle, and a microswitch, which works the....

Posted Image

... reverse lights! :banana:

Posted Image

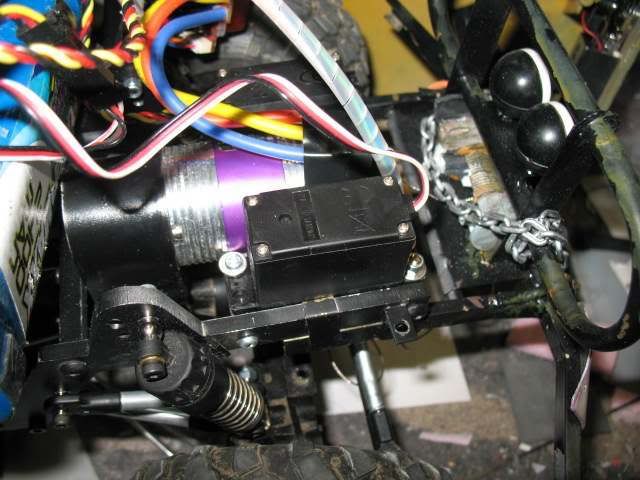

Winch servo mounted, hard against the motor.

Posted Image

Cable exit and a Privateer winch hook that I forgot I had :'(
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Piggys like mud!

http://www.youtube.com/watch?v=zOH1Vbuw7N8
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
does your wife know you drove threw the yard and made ruts just to play with your truck in the mud? that thing has got some rip
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
It was an accident. Really :D
