Back in the scene.
Topic Started: Mar 10 2008, 08:28 PM (853 Views)
Terminator13
Administrator
[ *  *  *  *  *  *  * ]
With the order of an AX10, X-Trail, Rock Crushers, Stock Car Wheels, and A Proline Blazer body, it looks like its time to gear up for the spring season. Im keeping the Highlift, but gonna throw 2.2's on it for the 2.2 scale class.

A Few questions. Body mounting, body posts through the side I assume will be the best way? If not what? This pertains to Stu mainly, How did you mod the Clod grill to fit the K5, as in mounting and everything?
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
Personally I've grown to hate side-mounted posts. They seem to snag on everything. I think TLT posts fit the X-Trail but I'm not sure. Either way it's not hard to stick something on that'll work.

The Clod grille is pretty easy. Put the grille in from behind while the body is still clear and draw a line around it. Then cut on the line, maybe a little smaller than it has to be so the grille fits tight. Then Shoe Goo it in place after paint.

Good to have ya back :banana:
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
welcome back are you gonna make it this weekend to freddies? :poke:
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Thanks Stu,I'll have to see what I have for post then. Sho Goo eh? Maybe I need to pic some up. Thanks!

Im not so sure, I'd love to, dont get me wrong but I wont know until thursday.
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Im there if the weathers good. maybe even with Brian to.

Does anyone have tlt servo mounts? I need them for the Battery Tray on the ax10, and also, anyone have some shocks? TLT's maybe? I've got $20 to my name so lmk.
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
I should have tlt servo mounts but if I dont I will go in the hobby shop buy a spare tlt axle housing for 4 bucks and you can have the servo mounts.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Thanks sloppy. Im gonna find something to throw your way. Don't you and Sterling have stampedes? I've got some spare parts that are yours. (Im cleaning house, so expect some stuff for sale, need to get rid of this trash. haha)
Offline Profile Quote Post Goto Top

NickRummy
Member Avatar
NOSTR Photographer & Styrene Pimp
[ *  *  *  *  *  *  *  *  *  *  *  * ]
I've been using velcro to mount my bodies lately. At least the scale stuff. That way nothing shows outside of the body. Works well!
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Dont need the servo mounts Matt, managed to get the extra set that came with the ax10 to work anyways. It showed up today, and this thing is damn cool. Love the tires, chassis and truck itself. Tires might be a tad big, but we will see. Pics later.
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]

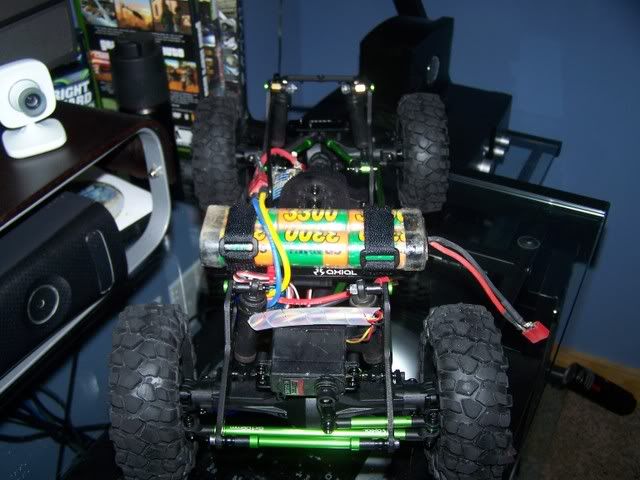

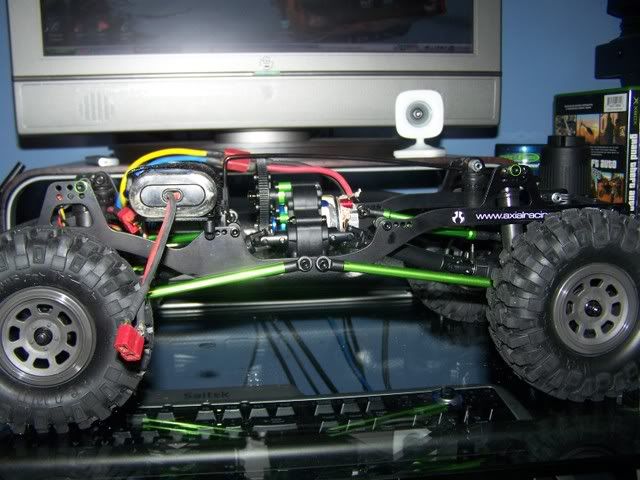

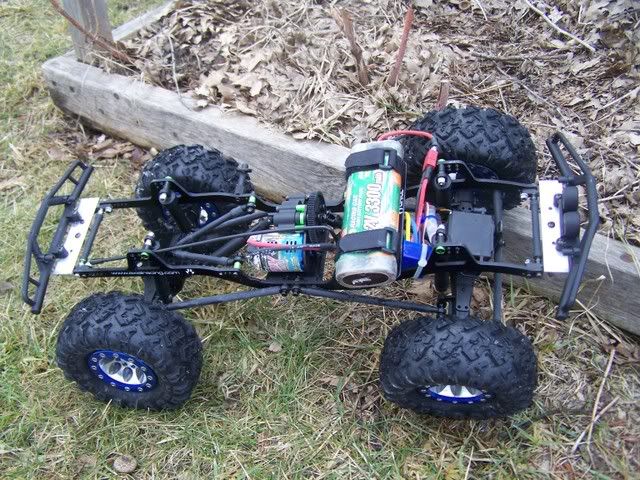

Ordered my AX10 from TheCrawlerStore, along with some stock car wheels and Rock Crushers. Then from Stormer I order a Proline Blazer Body which I have not recived yet.

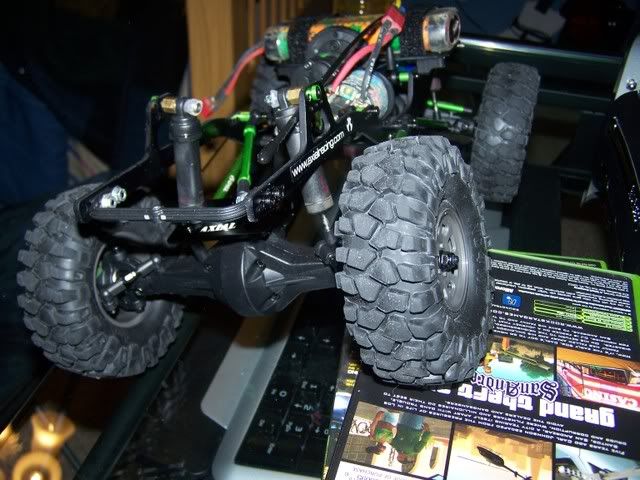

I planned to run a sprung suspension setup, but decided that for a large tired scaler, the droop would be better. AX10 shocks were to long, but T-maxx shocks were just right. They offered to much travel though, so I stuck about 3/4 in of fuel tubing in the shocks to keep them limited. I managed to keep axle steer to none. I've noticed that it can get pretty bad on droop setups.

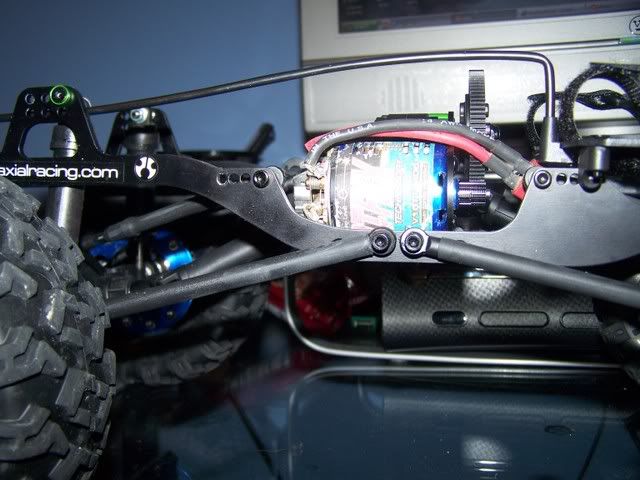

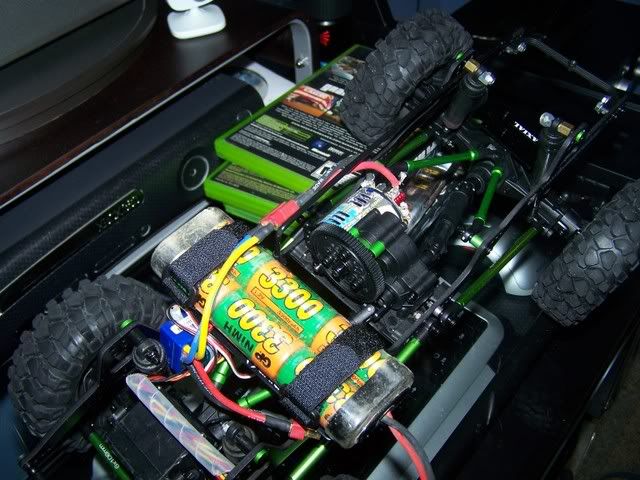

Next thing to deal with was the electronics. Standard electronics for a scaler, atleast in my book. Hs-645mg, Lrp WaterProof Runner Plus, DX3 w/ pro reciver, and a trusty old 55t lathe. Battery is a radioshack GP 3300 that I've had for two years, still gets a full charge. 3300mah.

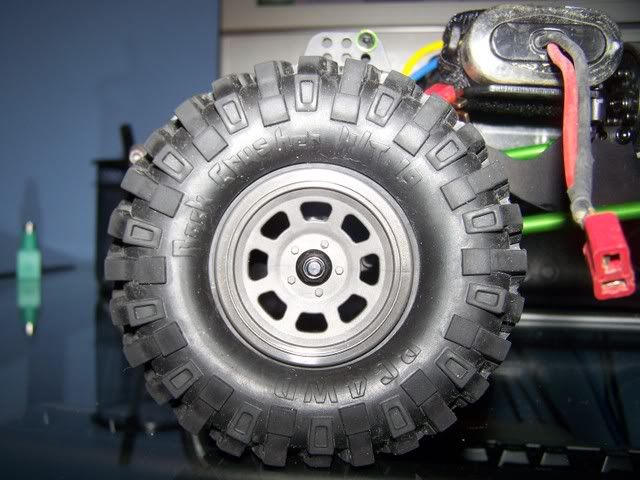

Tires are RC4wd Rock Crusher's mounted on Gunmetal stockcar wheels. 3oz of weight in the front per wheel. Full foams.

Some pics. I'll grab better ones tomarrow.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
looks good should do well stu's does.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Coles, you piss me off. Haha jk man, thanks for the wheels. Why were you so eager to get rid of them?

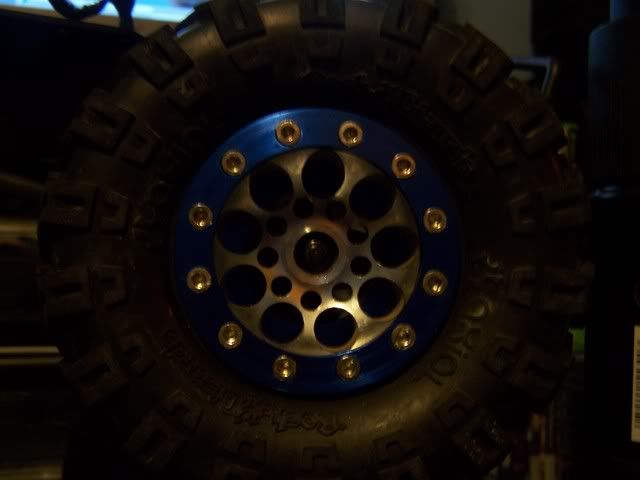

Anyways, picked up some 2.2 rc4wd beadlocks from Coles at the comp today. Took the rock lizards of the axial beadlocks, and took the Moab and Swampers off the rc4wd's. At the very end of the day, I threw them on to see how they were and they did outstanding imo. So now the Blazer body, rock crushers, and w/e is going on the highlift and this is going to be my 2.2 scale. I might also just be able to swap bodies and tires to run 1.9 and 2.2 but we'll see. I want to pick up a bushwacker body for this, along with some scale stuff. I've got a few ideas.

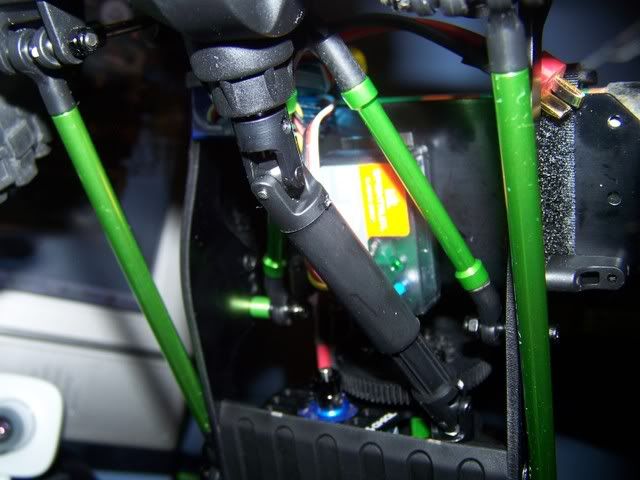

Also picked up the trusty savage bumpers from freddie's today and mounted the from up. Going to work on the rear in a little bit. Thinking about a fairlead on the bottom? we'll see. Shrink tubbed the links, that way I dont have to strip the green, haha. Lazy ass.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]

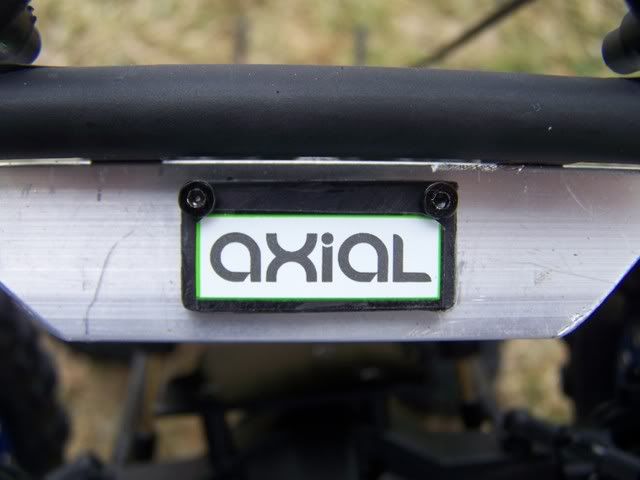

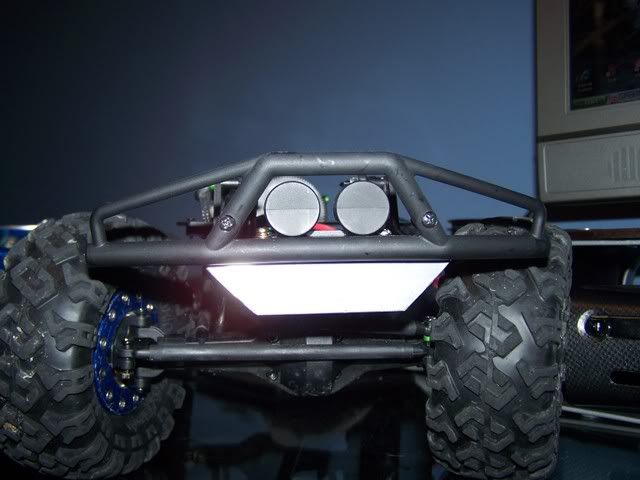

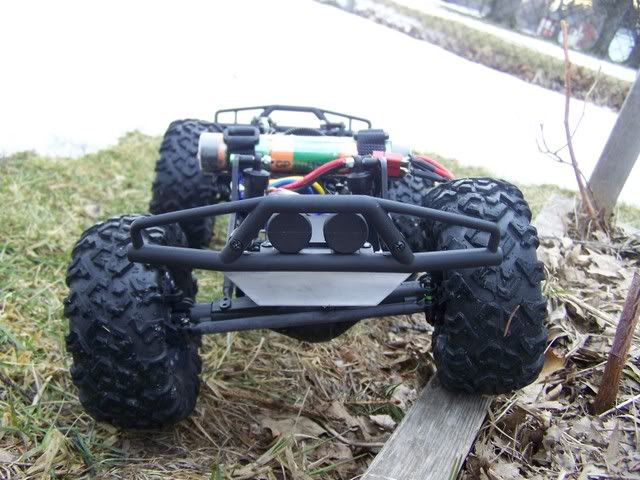

Got some more pics. Completed the rear bumper.

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Old Busted Hotness
Member Avatar
I <3 moss
[ *  *  *  *  *  *  * ]
THat X-Trail is a little asskicker.

But take that shrink tube off the links. It's gonna grip the rocks like you've got another tire bolted to the skidplate.
Posted Image

Run what ya brung, unless it's your mouth.

MSD Team Driver
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
Man I hate x-trails










well not really I just hate that I dont have one. :'( I cant believe what these things do and they look great. I am gonna second the shrink on the links thing sounds like it will drag pretty bad.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]

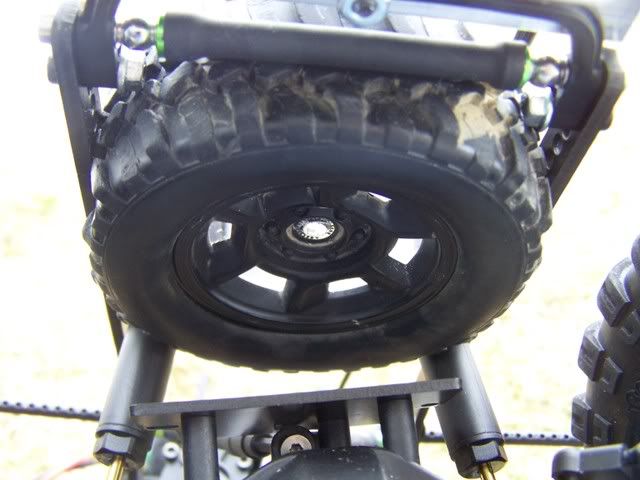

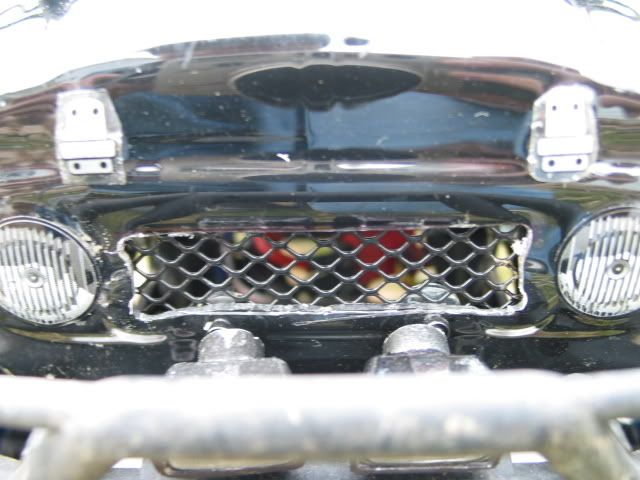

I knew that 4x4 grill from the clod was good for something. BFG spare might not stay, we'll see.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
Well this seems dead but its not.

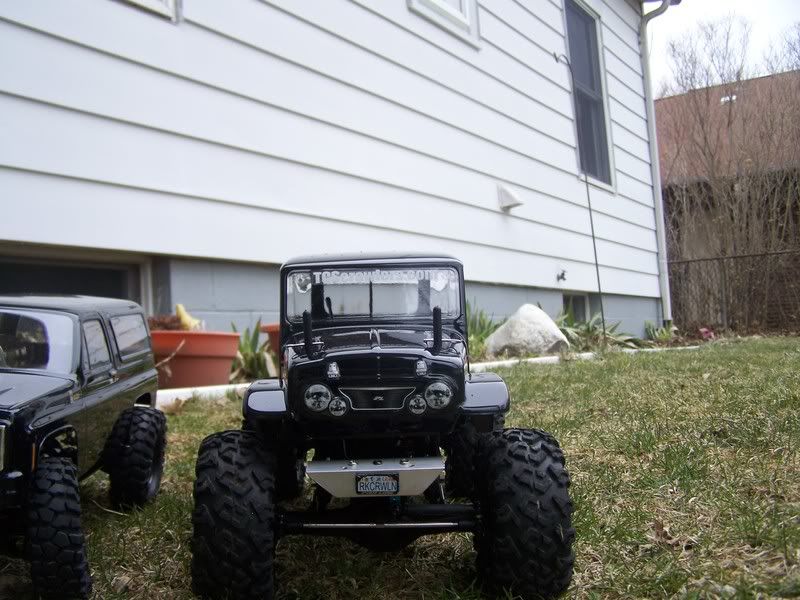

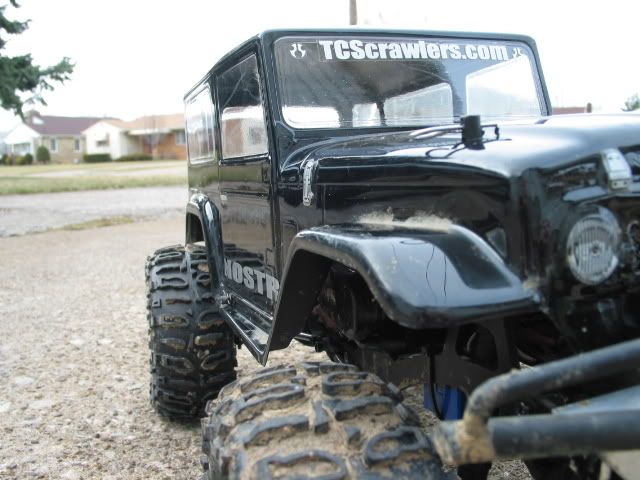

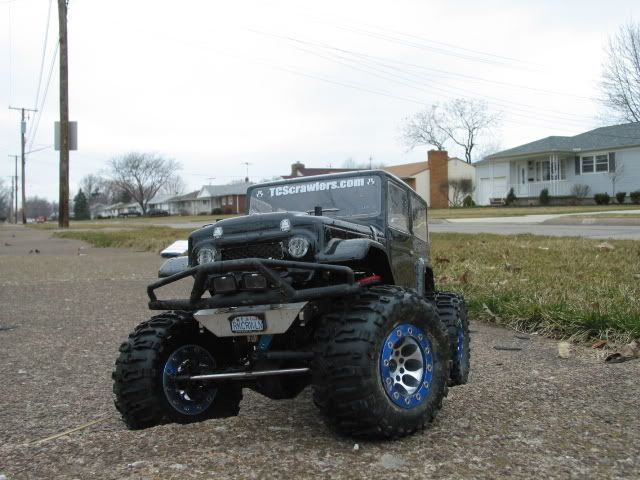

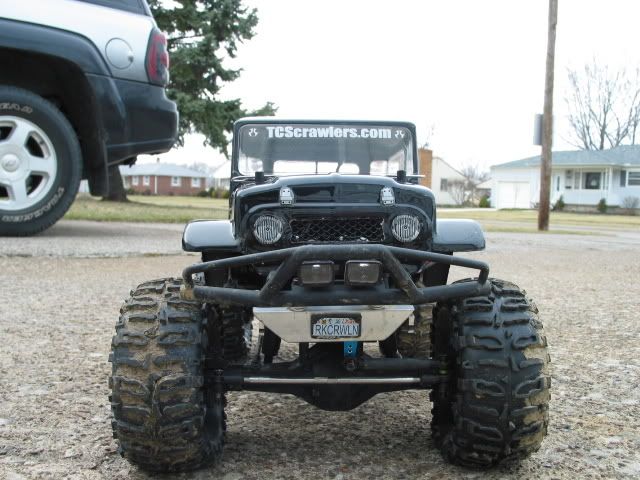

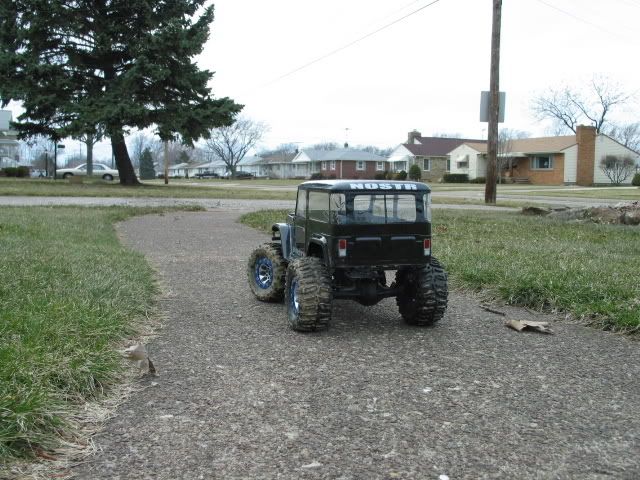

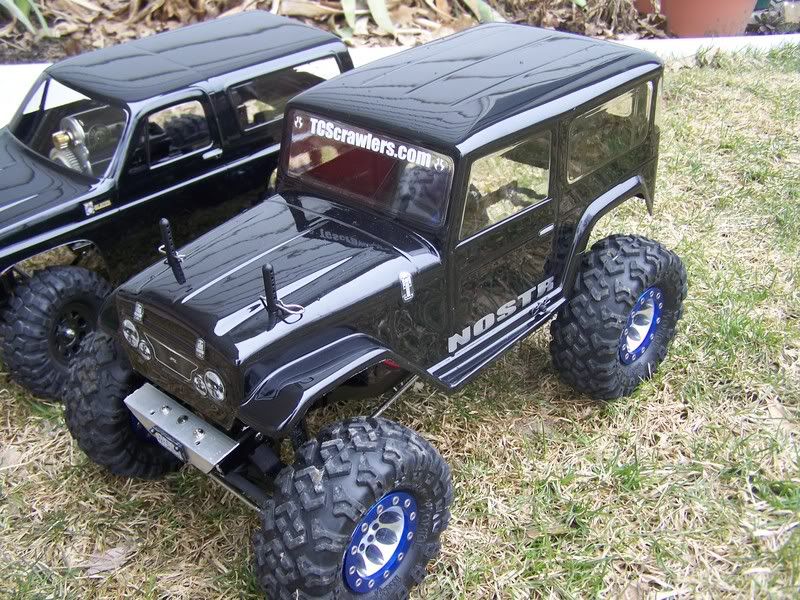

Had to hack the chassis, almost an inch, just to get the look I wanted with the Fj40. Swapped the lower links for traxxas links, and painted up the body.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

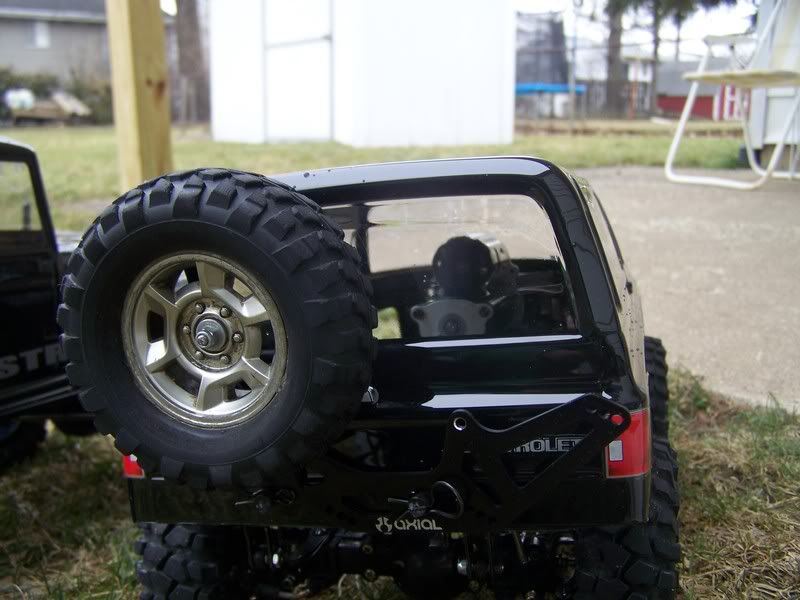

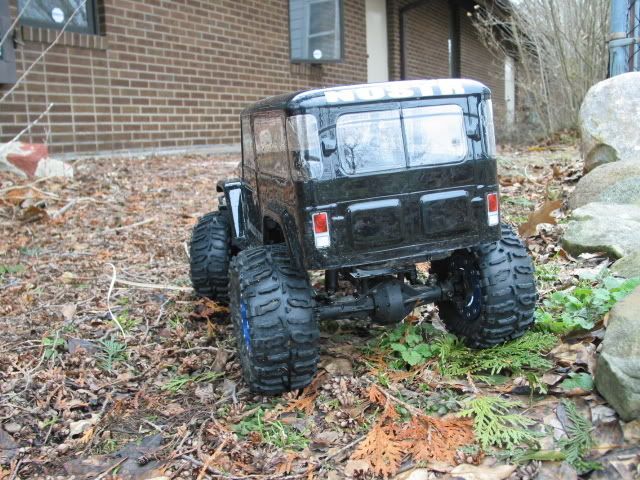

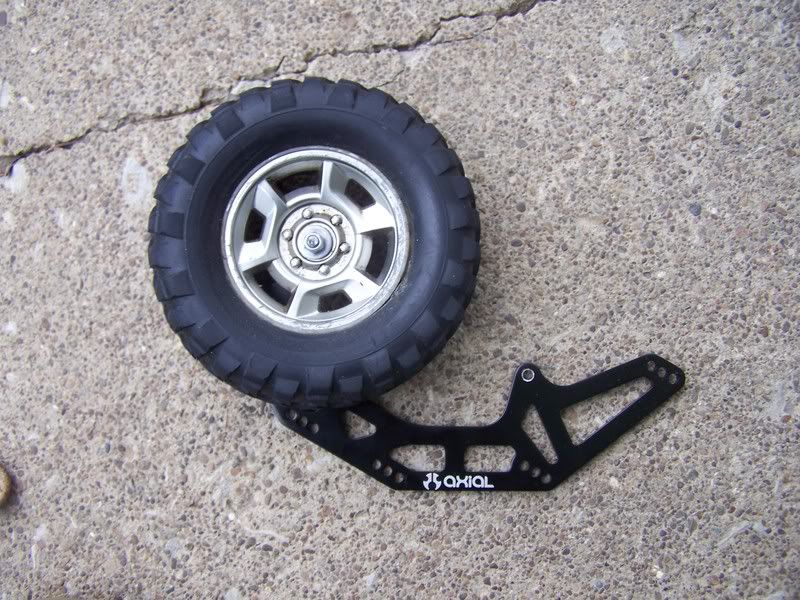

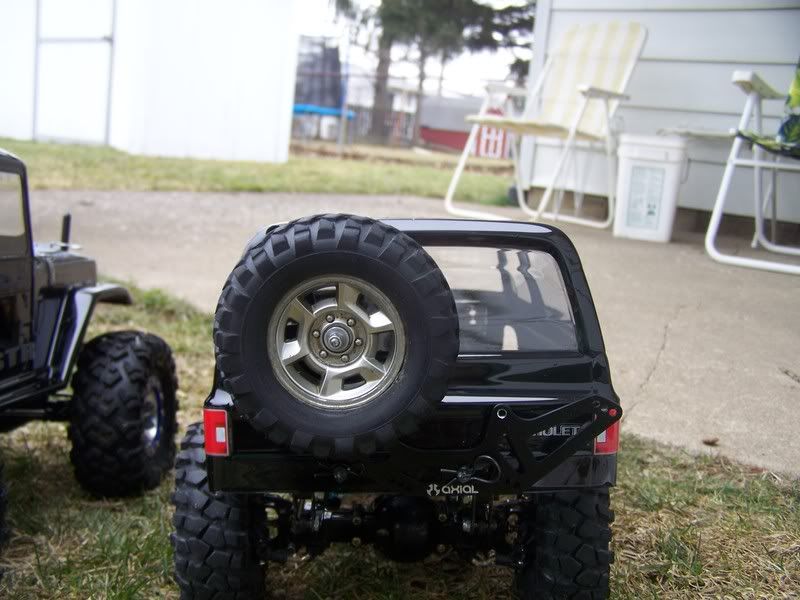

Who knew axial was nice enough to throw in a spare tire carrier in their kit?

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

NickRummy
Member Avatar
NOSTR Photographer & Styrene Pimp
[ *  *  *  *  *  *  *  *  *  *  *  * ]
man I really need to get my blazer body out and get something built with it. They look great with the crushers.
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
NickRummy
Mar 27 2008, 02:22 PM
man I really need to get my blazer body out and get something built with it. They look great with the crushers.

Thanks Nick. I wasn't sure how it was going to look at first, but after it got painted it looks alot better. Im gonna be bringing it with me sat. if you want to take a look at it.
Offline Profile Quote Post Goto Top

NickRummy
Member Avatar
NOSTR Photographer & Styrene Pimp
[ *  *  *  *  *  *  *  *  *  *  *  * ]
I'll definitely want to check it out. I might bring a wheel wrench to borrow one of your wheels too. I want to see how they look under the 4 runner :banana:
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
NickRummy
Mar 27 2008, 02:58 PM
I'll definitely want to check it out. I might bring a wheel wrench to borrow one of your wheels too. I want to see how they look under the 4 runner :banana:

Haha, alright. Thats no problem too, haha.
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]

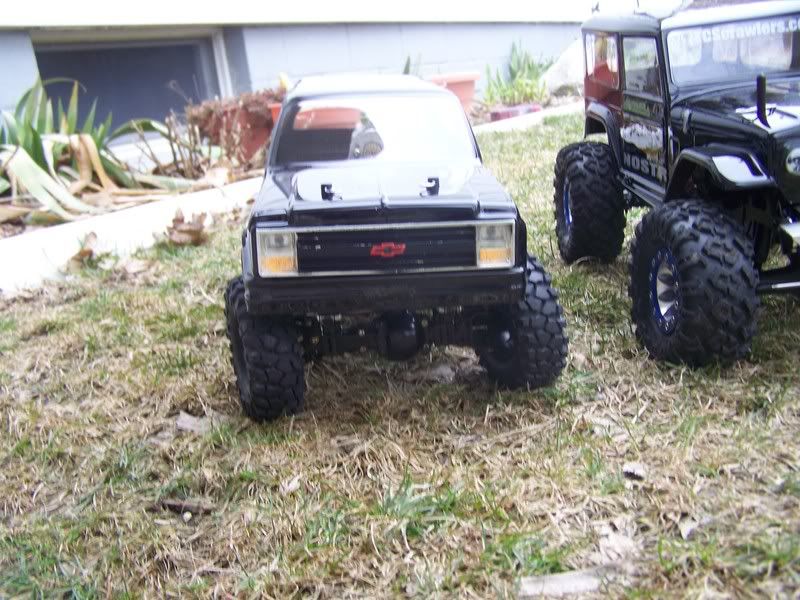

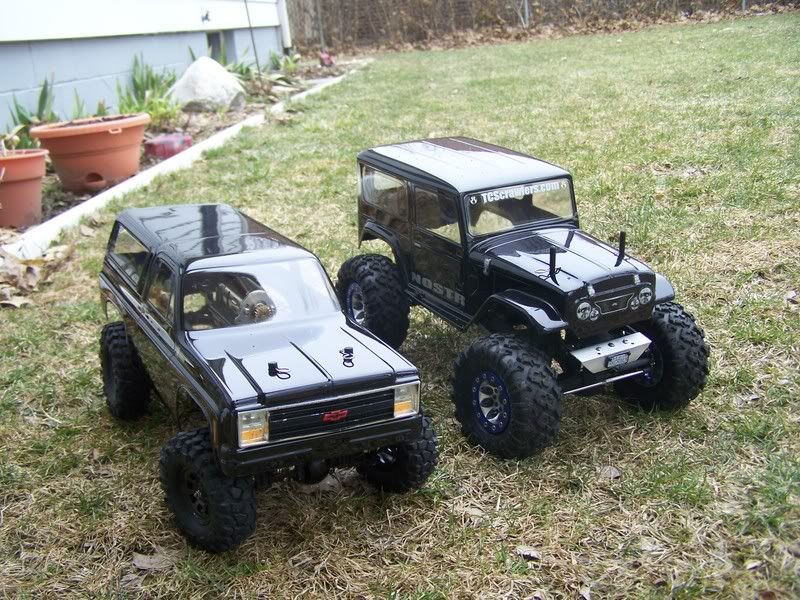

back in black huhh sweet. the both look great man.
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]
sloppy
Mar 27 2008, 10:28 PM
back in black huhh sweet. the both look great man.

Yup. I love black, and it fit the trucks. And besides, mud shows up great on black. haha.
Offline Profile Quote Post Goto Top

Terminator13
Administrator
[ *  *  *  *  *  *  * ]

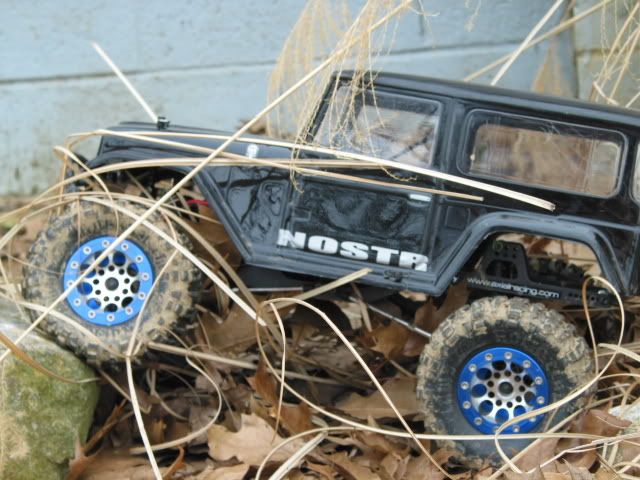

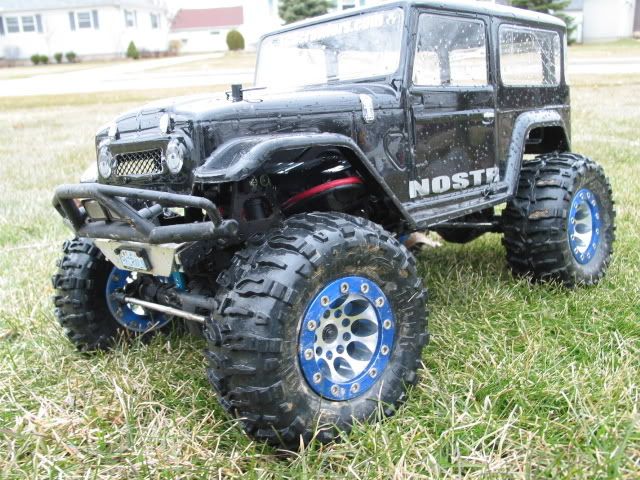

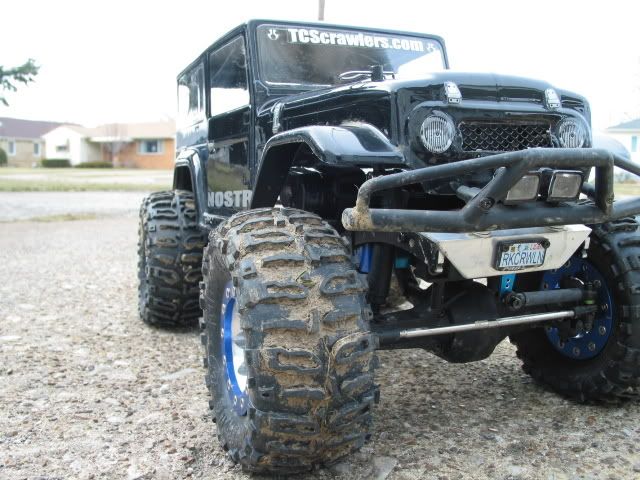

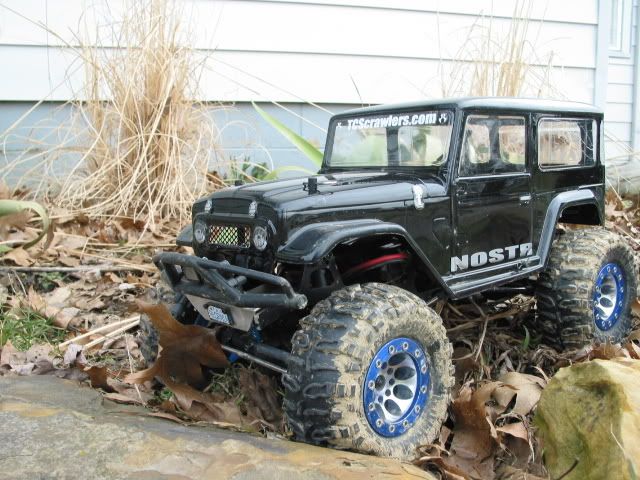

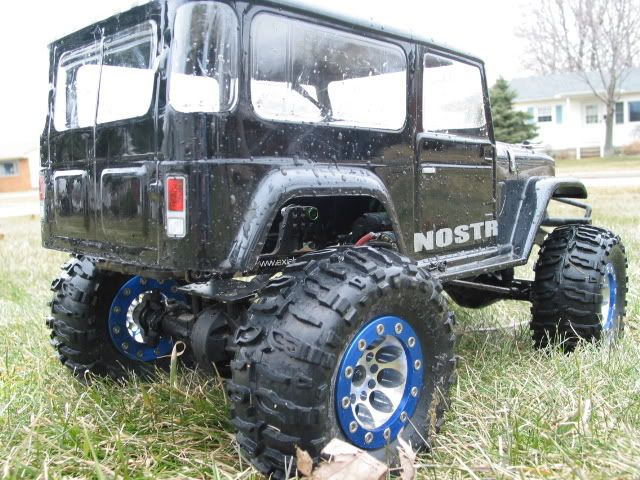

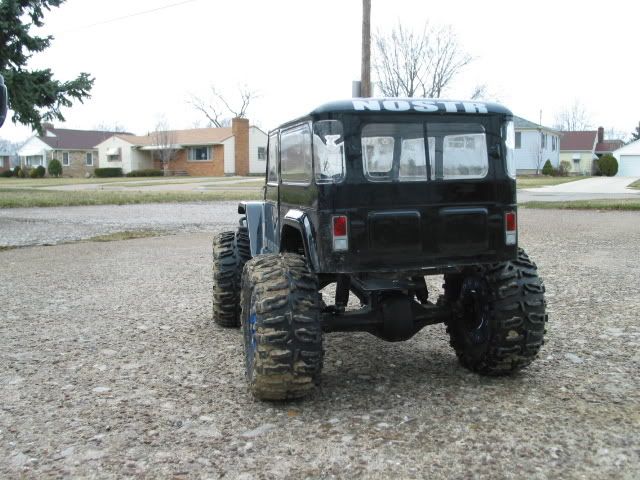

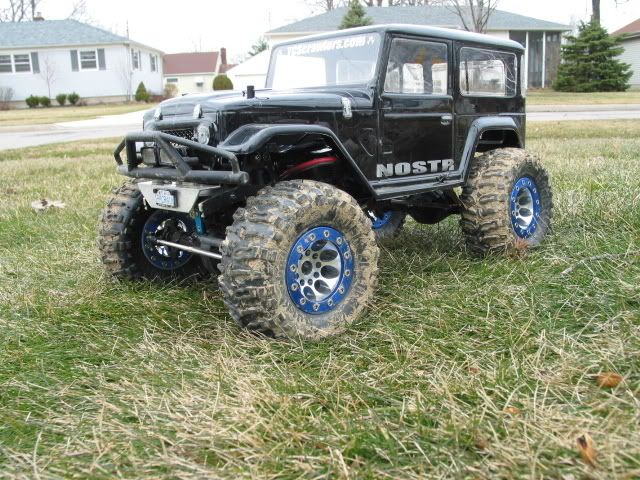

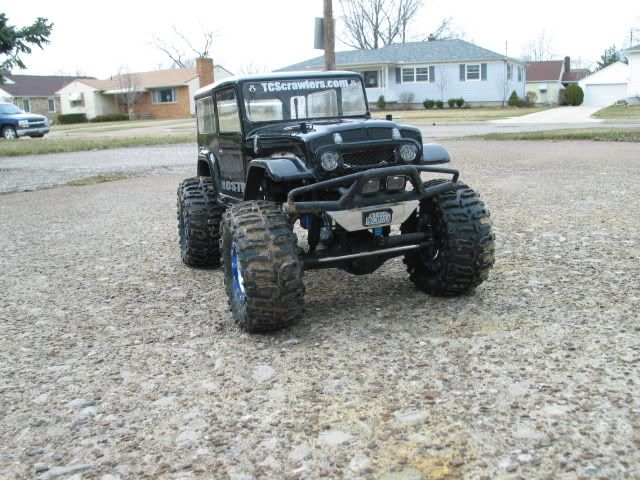

More pictures with a $500 camera. :nice:

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

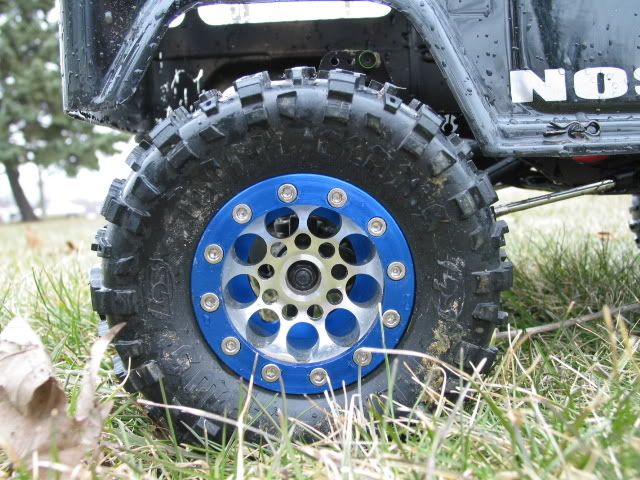

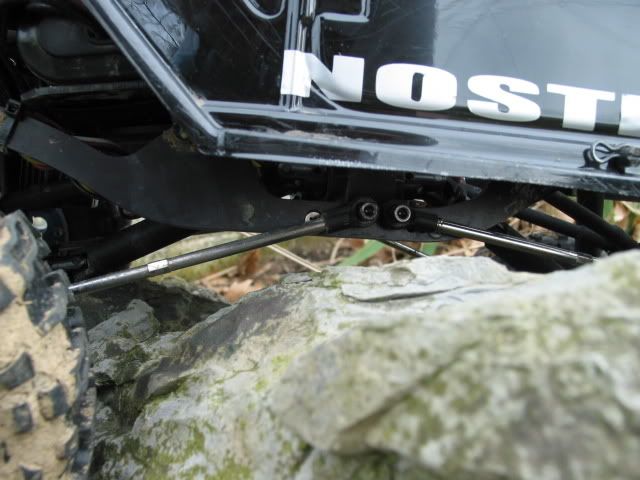

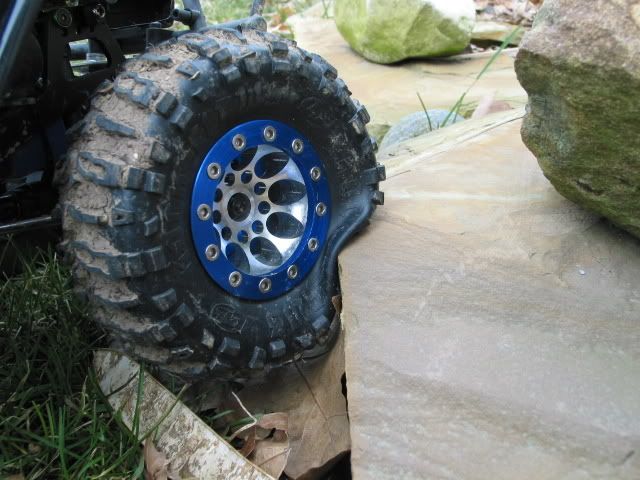

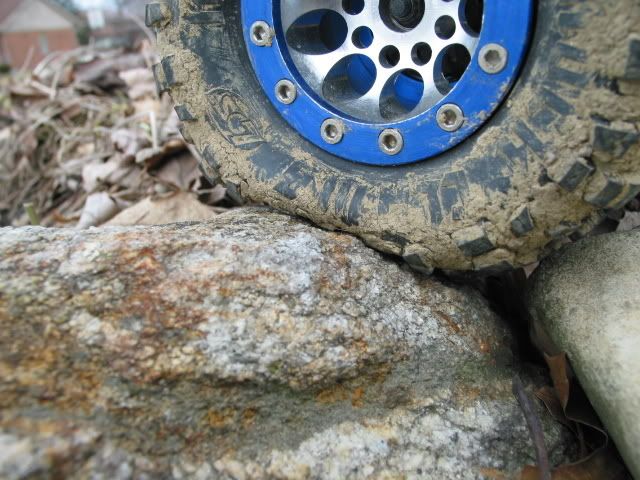

Love how the losi's conform to the rock.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

sloppy
Member Avatar
Im batman
[ *  *  *  *  *  *  *  *  *  *  *  * ]
it is a good lookin truck clean and simple
Posted Image

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/sig/sloppysign.jpg" border="0"></a><div style="font-family:arial,sans-serif;font-size:11px;"><p> </p></div>
Offline Profile Quote Post Goto Top
