| New AX10 Dig | |
|---|---|
| Tweet Topic Started: Mar 16 2008, 09:55 PM (395 Views) | |
| CYCLONE | Mar 16 2008, 09:55 PM Post #1 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Hey, what do you think of the new Dig products being released...... any one know if they are good or bad ? TCS/RC4WD-AXD-Dig-Disconnect-for-Axial-AX10-Scorpion $45 Visionary-Fabrication-AX10-Disconnect-Assembly $72 |
![]() |
|
| TLTRyan | Mar 16 2008, 10:33 PM Post #2 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I have 2 of the VF digs on order. Should be here by the end of the week. The TCS/RC4WD dig uses the same dig assembly as the R2D. They seem to be hit or miss on Quality. Rooster and Destroyer both have the R2D. Roosters works perfect, Destroyers does not work at all. Im sure they both have more info on them. |
![]() |
|
| CYCLONE | Mar 17 2008, 08:13 PM Post #3 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Ryan, Did you get them from TCS ? I see where you can pre order, but do they wait untill they ship before running your card ? <_< |
![]() |
|
| TLTRyan | Mar 18 2008, 11:54 AM Post #4 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I ordered from TCS. They charge your card when you order. |
![]() |
|
| CYCLONE | Mar 23 2008, 08:03 PM Post #5 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I think some of the VF Digs were shipped. Anyone got theirs yet ?? How does it look/work ? B) |
![]() |
|
| TLTRyan | Mar 23 2008, 08:15 PM Post #6 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
The first batch is expect to ship out this week. Hopefully we will see them by Fri. |
![]() |
|
| TLTRyan | Mar 23 2008, 09:10 PM Post #7 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Here is an install guide for the VF Dig. http://www.visionaryfabrication.com/sales/digbuild.htm |
![]() |
|
| Superman | Mar 24 2008, 09:39 PM Post #8 |
![]()
AKA REX
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Hope to get mine by the comp. Saturday!!! I was order number 300 tho. :( |
![]() |
|
| WheelinKING | Apr 2 2008, 11:18 PM Post #9 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
x2 |
| 2012 ECC Scale Dash Champion | |
![]() |
|
| aaugman | Apr 3 2008, 10:34 PM Post #10 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I got mine, its installed and works awsome |
![]() |
|
| TLTRyan | Apr 4 2008, 01:10 PM Post #11 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I installed mine earlier this morning. Install went pretty easy. Still need to do more testing. |
![]() |
|
| TLTRyan | Apr 7 2008, 09:39 PM Post #12 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

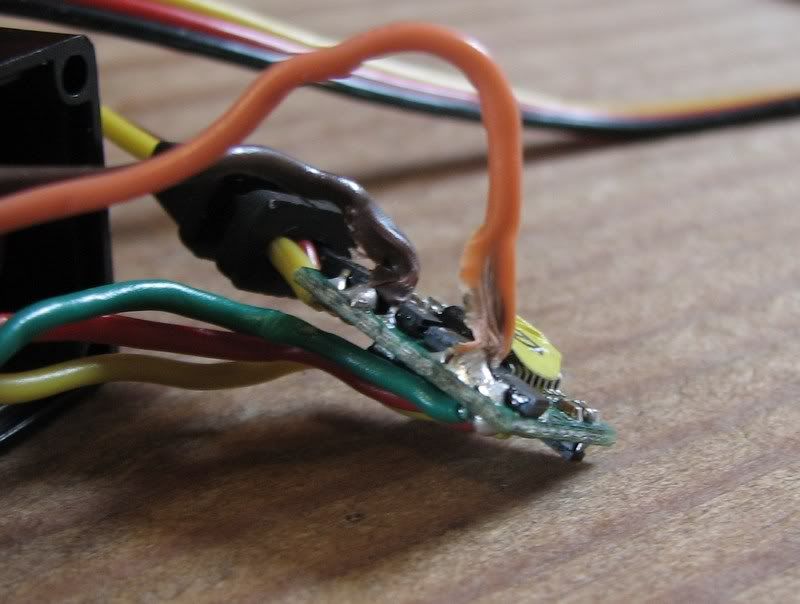

So far the dig unit is working fine. I have had it get hung in lock or 4wd maby twice, had to take a reverse to get it back working. Overall it is working smooth. But the big problem is the servo. Posted Image It was running at 6V. This also happened after driving for maybe 20 mins. The circuit board is enclosed in some thick shrink wrap inside the servo case. It got hot enough to melt the motor wires, brown and orange. It also melted the solder joint on the orange wire bridging it with another solder joint. The servo case was barely warm to the touch. Aaugman has fried 1 if not 2 servos. Fish spoke with the guys at VF and they said all of their prototype testing was done using 5v. |
![]() |
|
| TLTRyan | Apr 8 2008, 09:30 PM Post #13 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

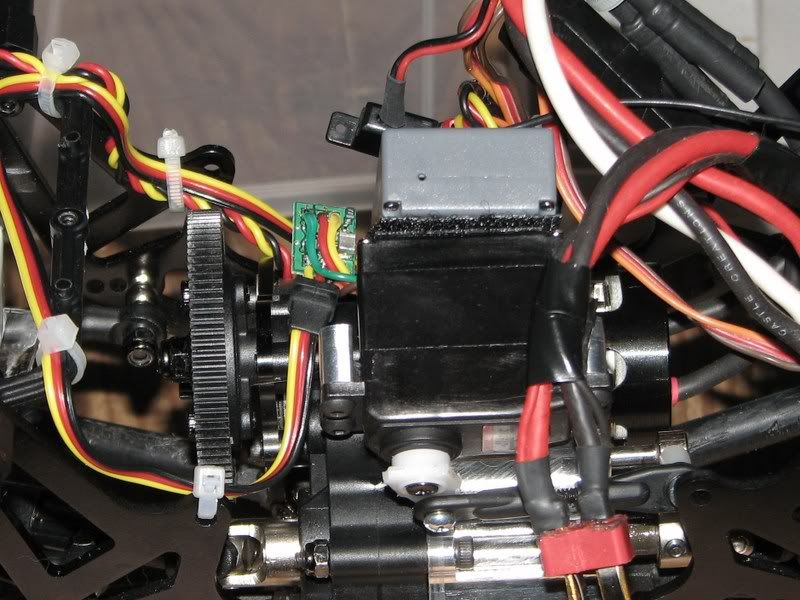

I installed another servo. I moved the circuit board outside of the case, also took off the shrink wrap covering it. Posted Image It is now running off the MM. I reset my end points. After setting endpoints and driving around for about 20 mins the max temp I reached was 112F. This was on both the circuit board and the servo case on the motor side. I think the key is getting the end-points set up perfectly, otherwise the servo will overheat. The dig also works flawlessly now. I drove around in both forward and reverse cycling from 4wd to disconnect to dig and it worked perfectly. :thumbsup: :thumbsup: :thumbsup: |
![]() |
|
| CYCLONE | Apr 15 2008, 07:50 PM Post #14 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I just recv'd the VF dig, and very concerned about using the 225mg servo Im reading on almost every forum about them burning up ( even after setting endpoints correctly) :( Will Hitec warranty them ? T |
![]() |
|
| Destroyer | Apr 15 2008, 07:57 PM Post #15 |
|
Destructor of things
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I'd say run the circuit board externally from the start. That way you can monitor it easily for the first little bit to make sure it is not getting hot. With mine that way, it will not even get warm after running a course and practicing for a bit afterwards. I also run mine on 4.8-5V now, with the heatshrink still on the board. Hitec should warranty them....just check to see how long it is for. |
![]() |
|
| CYCLONE | Apr 15 2008, 09:49 PM Post #16 |
|
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Thanks for the info D :thumbsup: |
![]() |
|
