ax 10 rtr steering upgrade!!; for under $20
Topic Started: Sep 4 2008, 10:15 PM (165 Views)
the ax man
swiss cheese chassie
[ *  *  *  *  *  *  *  *  *  * ]
well for the ax 10 being such a good truck it was an insult that they put the plastic steering on the rtr.

you know me... i had to fix mine.


6/32 threaded rod 3ft $5.00 (ace hardware)

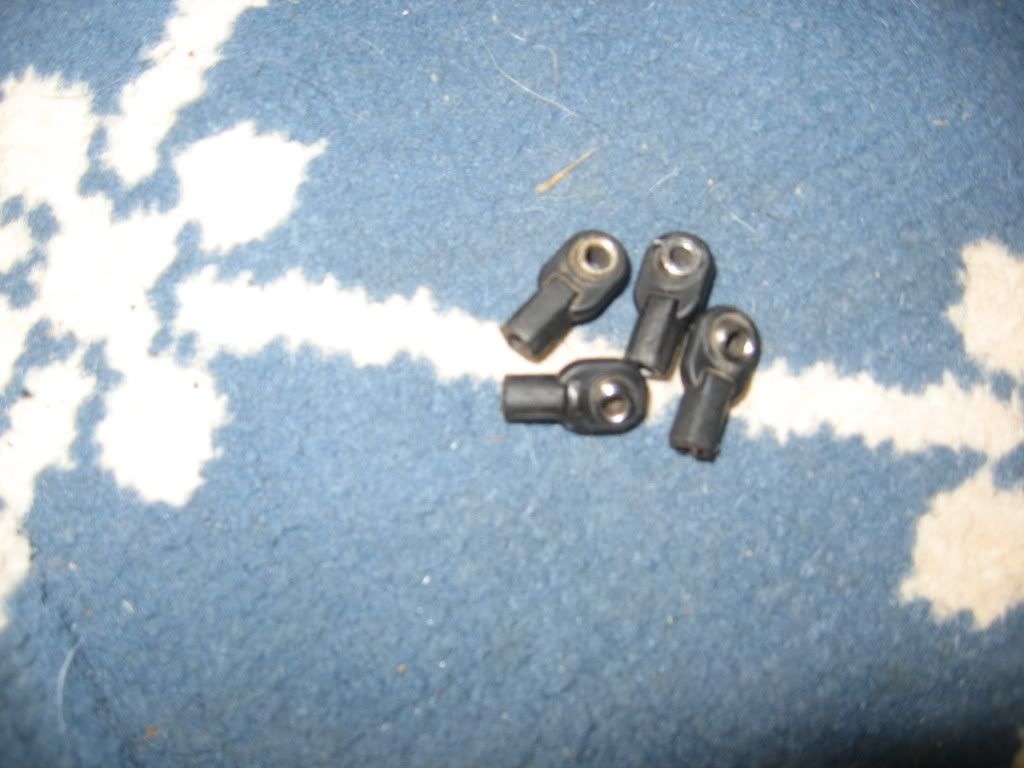

traxxas rod ends $4.00 (hobby town)

some spare screws

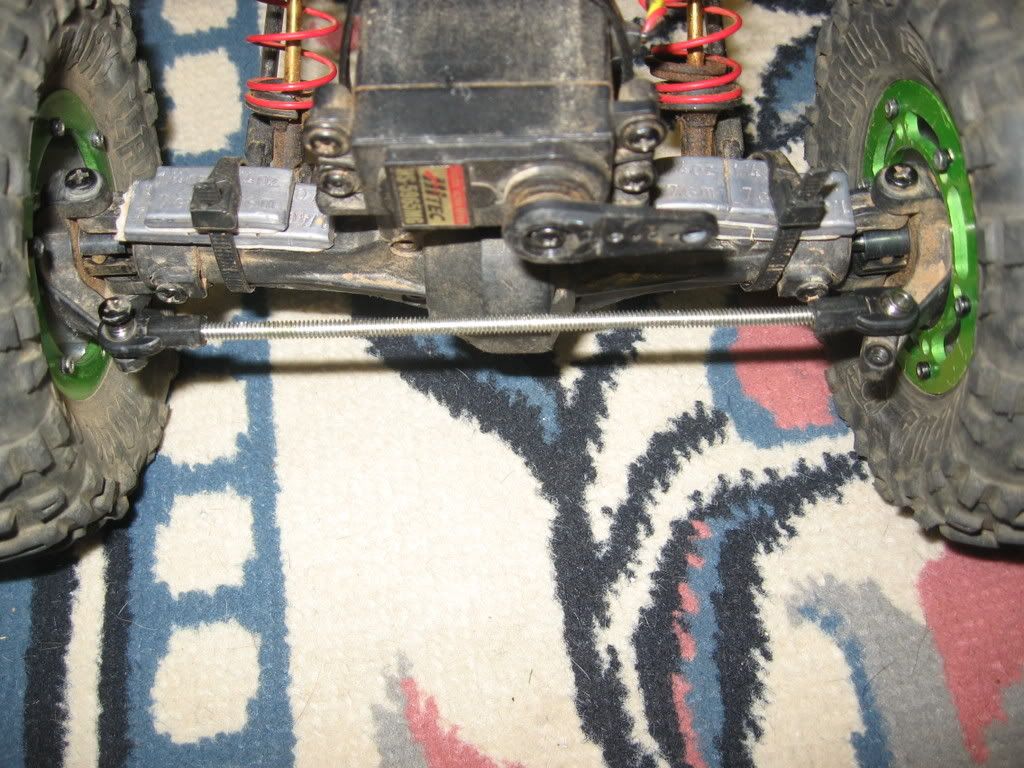

take a section of threaded rod cut to 13 1/2 cm

screw on rod ends, the set aside.

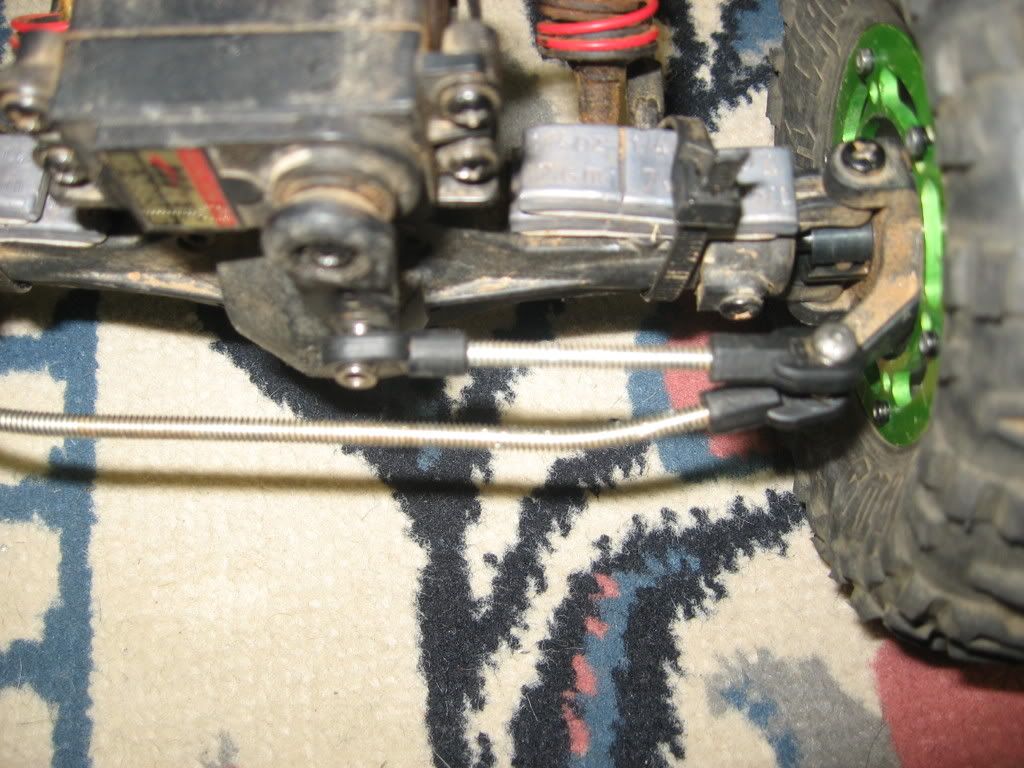

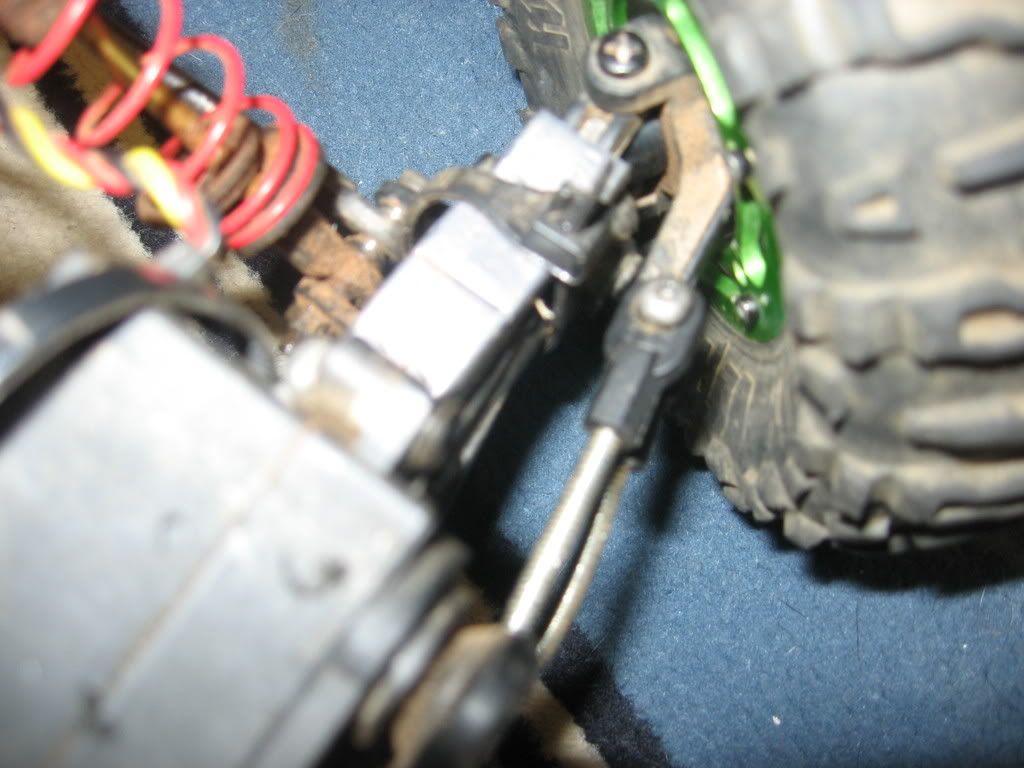

next, cut anouther pice to 4 1/2 cm this will be the short part that connects to the servo.

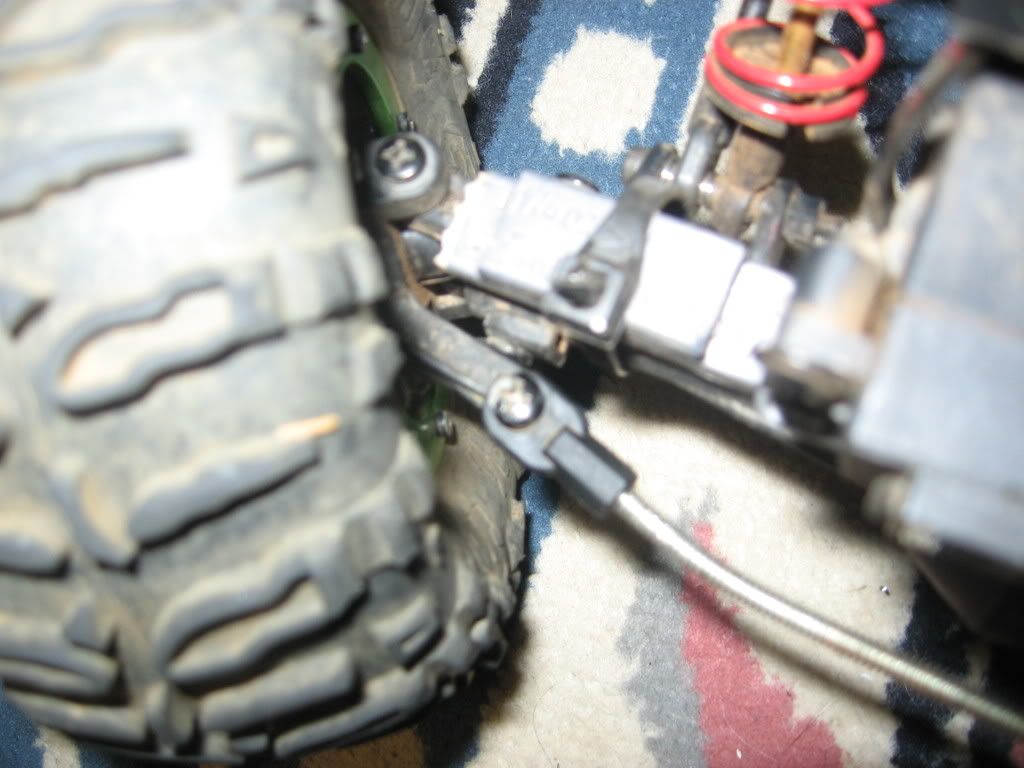

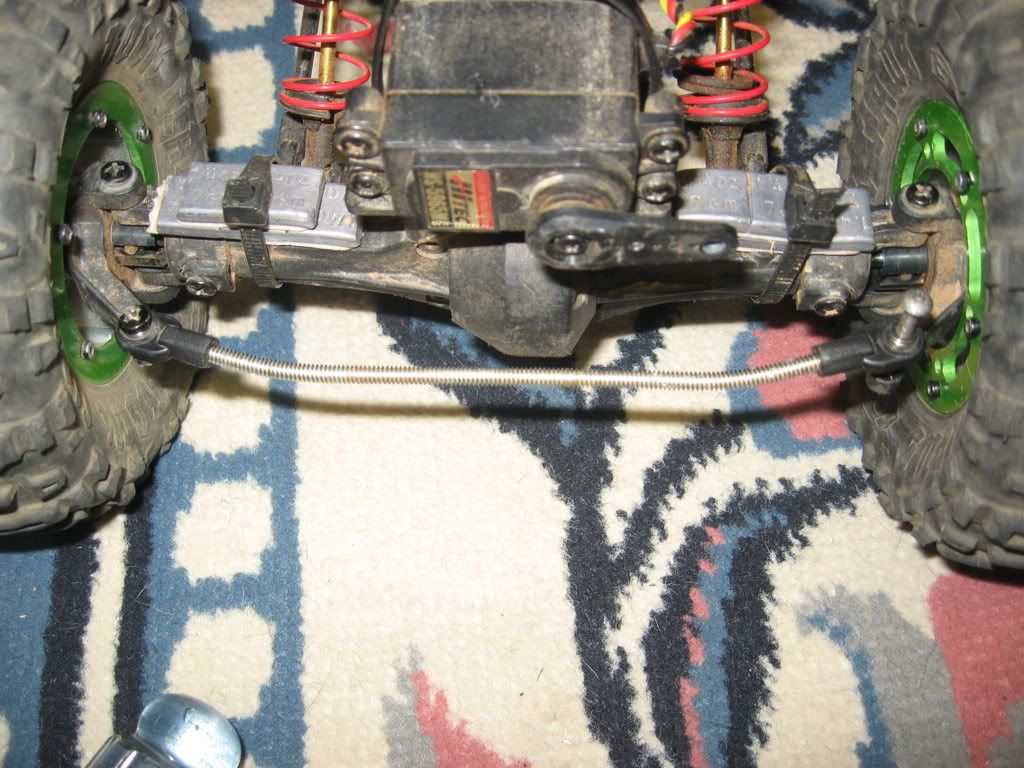

on the longer piece mesure one cm from each rod end and make a 30 degree amgle bend.


install and use!


Posted Image


Posted Image

Posted Image

Posted Image

Posted Image



Posted Image










Reporter: So, what do you feel when you shoot a terrorist?Marine returning from Afganstan: only a slight recoil ma'm.

Interview ended.
Offline Profile Quote Post Goto Top

Destroyer
Member Avatar
Destructor of things
[ *  *  *  *  *  *  *  *  *  * ]
Yup, common trick from the old days. You will want to sleeve the links with some brakeline or alu though, otherwise you will break/bend the allthread very easily, especially with the way you had to bend it. Once you get it sleeved it should work well.
Offline Profile Quote Post Goto Top

Colby
Member Avatar
Pants on the ground
[ *  *  *  *  *  *  *  *  *  * ]
Note to self, NEVER USE ALLTHREAD WITHOUT COVERING. I used it for bent links, and as destroyer showed you about your geometry, mine SNAPPED with the force of 2 backflips and erics little puppy haha
ScaleReady Chassis Fab
Offline Profile Quote Post Goto Top

crawler noob
Member Avatar
Drifta's do it sideways
[ *  *  *  *  *  *  *  *  *  * ]
put some carbon on it :P
Posted Image
Offline Profile Quote Post Goto Top

the ax man
swiss cheese chassie
[ *  *  *  *  *  *  *  *  *  * ]
it works fine.

it has survived my dads driving so its pritty bullet proof
Reporter: So, what do you feel when you shoot a terrorist?Marine returning from Afganstan: only a slight recoil ma'm.

Interview ended.
Offline Profile Quote Post Goto Top
