| electronics mounting; where should the be put? | |
|---|---|
| Tweet Topic Started: Sep 9 2008, 09:56 PM (190 Views) | |
| the ax man | Sep 9 2008, 09:56 PM Post #1 |
|
swiss cheese chassie
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

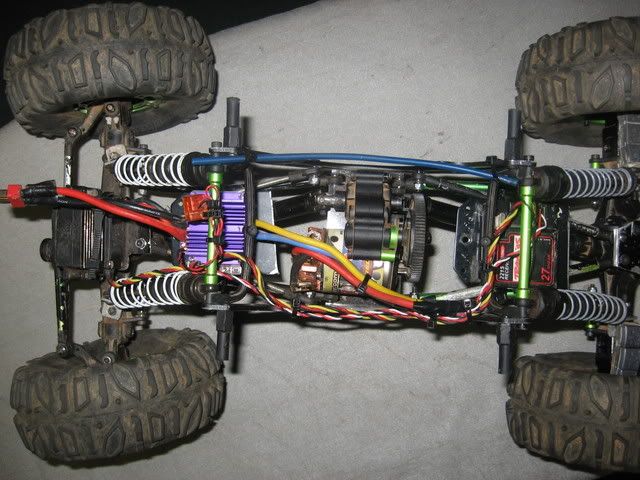

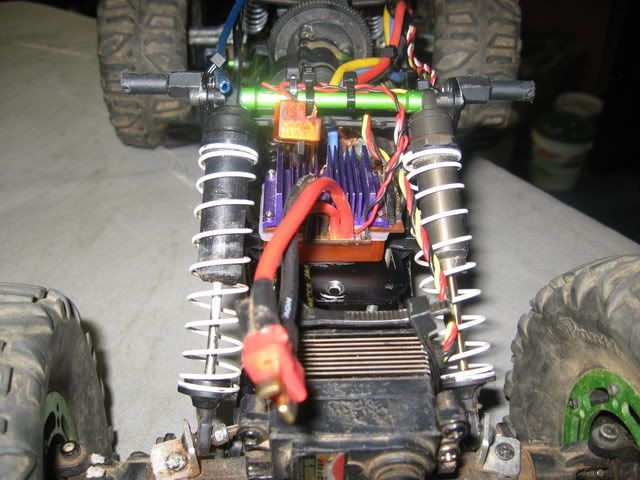

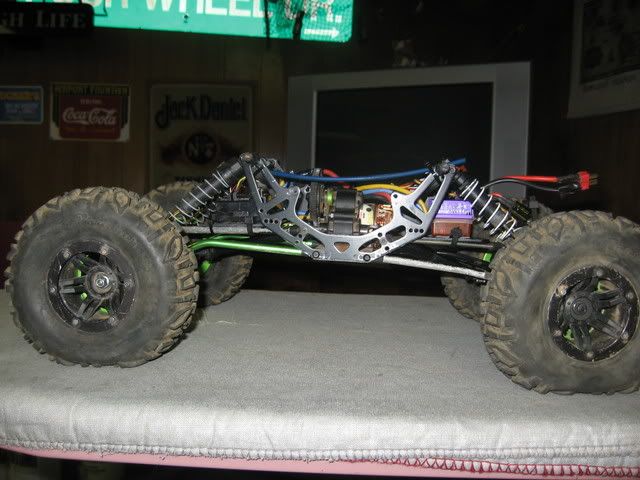

I tried to put them on the battery plate, the axal, and the servo. Where is the best position? this is my current setup. Posted Image Posted Image Posted Image Posted Image |
|
Reporter: So, what do you feel when you shoot a terrorist?Marine returning from Afganstan: only a slight recoil ma'm. Interview ended. | |
![]() |
|
| Colby | Sep 9 2008, 10:25 PM Post #2 |
![]()
Pants on the ground
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
The real question is where do you mount your battery, and why the heck you have weights on your back axle? |
| ScaleReady Chassis Fab | |
![]() |
|
| TLTRyan | Sep 10 2008, 11:47 AM Post #3 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

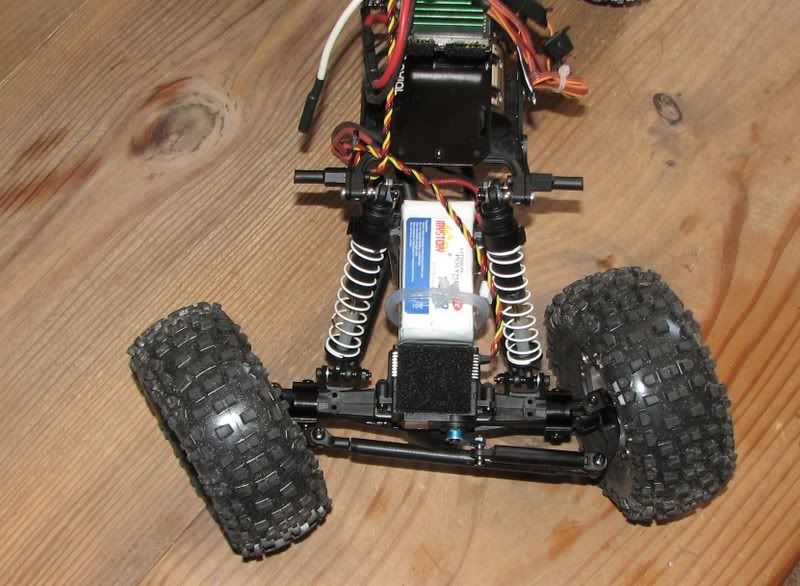

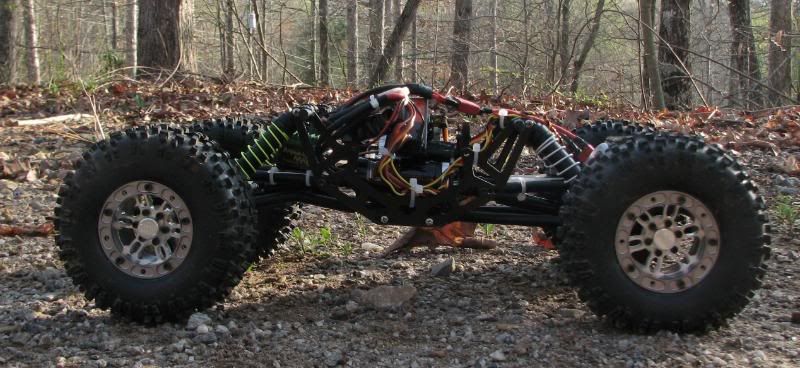

On my ax-10 I had the ESC on the rear upper links, The receiver on the Trans, and a 3 cell lipo on the front upper links behind the servo. Posted Image Posted Image |
![]() |
|
| getbent2night | Sep 10 2008, 11:58 PM Post #4 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
:thinking: why not put alittle weight on the rear axle? any technical reason out there? |
|
X-TRAIL 4Runner 93 4runner... ...i need more toys... | |
![]() |
|
| Colby | Sep 11 2008, 12:58 AM Post #5 |
![]()
Pants on the ground
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Well, it is always better to have a light rear end, and a heavy front end for when you go steep. My truck for instance, has a 7 cell saddle pack on the front and the electroncis are all mounted front the rear shockmount and forward. My truck can climb up a wall and sit almost paralell. |
| ScaleReady Chassis Fab | |
![]() |
|
| getbent2night | Sep 11 2008, 10:57 AM Post #6 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
oh i see. ya i actually run alittle weight in the center of my rear diff. i think that having an evenly balanced truck, with alittle more to the front, works pretty well for me. my esc is mounted center and on top of my chassis and rx is mounted on the rear uppers. they are so light they really make no difference where i put them. the rig still balances on it side. |
|
X-TRAIL 4Runner 93 4runner... ...i need more toys... | |
![]() |
|
| the ax man | Sep 11 2008, 07:50 PM Post #7 |
|
swiss cheese chassie
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
havent decided on the battery mount yet. |
|
Reporter: So, what do you feel when you shoot a terrorist?Marine returning from Afganstan: only a slight recoil ma'm. Interview ended. | |
![]() |
|
| getbent2night | Sep 12 2008, 09:29 AM Post #8 |
![]()
100% Rock Crawler
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
the battery ideally would be low as possible, foward on the chassis, but we shaftys cannot do that, well im sure someone could fab up some kind of crazy chassis. but ya over the axle seems to work for most. |
|
X-TRAIL 4Runner 93 4runner... ...i need more toys... | |
![]() |
|
