4 link calculator
Topic Started: Sep 28 2008, 09:40 PM (190 Views)
TLTRyan
Member Avatar
100% Rock Crawler
[ *  *  *  *  *  *  *  *  *  * ]
I found this program searching google and thought I would share.

http://mysite.verizon.net/triaged/files/4BarLinkV3.0.zip


It is designed for 1.1 applications but you can still enter in your measurements in inches and it will give accurate readings.

The grid lines are scaled for a 1.1 also so your image will show up really small. But this can be fixed.

Click on one of the horizontal grid lines
Choose format at the top of the screen.
Click on the scale tab.
The enter in the following values for the selected axis.
minimum -5
maximum 25
major unit 5
minor unit 1

Now do the same for the vertical grid lines.

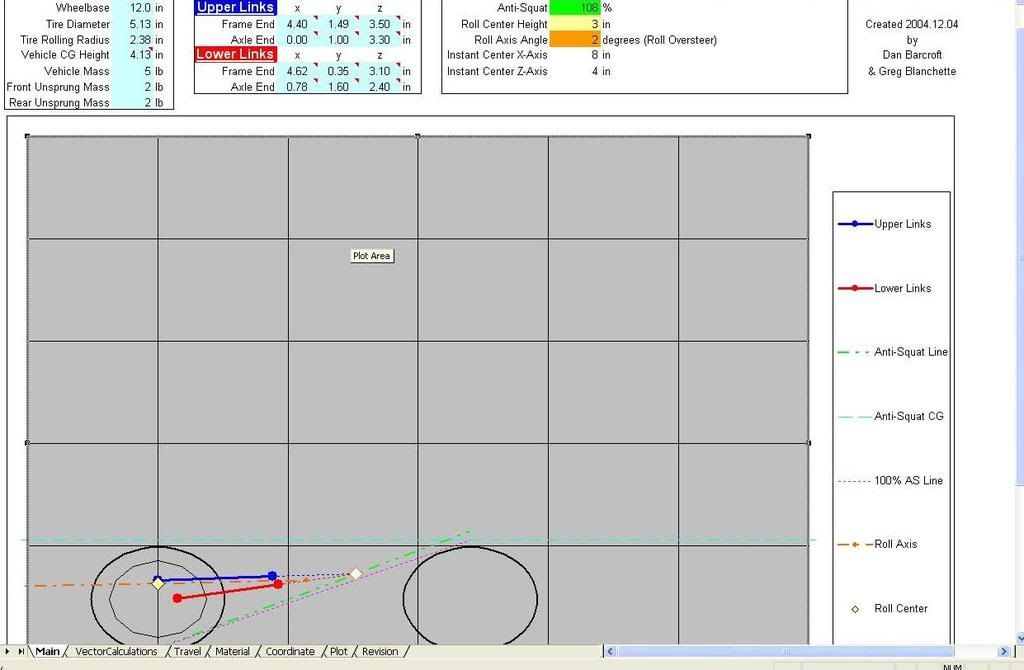

With a bit of luck you should have a scaled down side view of your truck.
Posted Image
