I had to sell my SGB clone pilot a few years ago, and it was a heart ache. My wife, bless her heart, tried to replace it with one she saw on ebay not realising its origins. It was a UK recast of the SFP lid. Filled with all kinds of badness, but it was bought with such good will, I had to do something with it.

so I sought to make it as accurate as I could

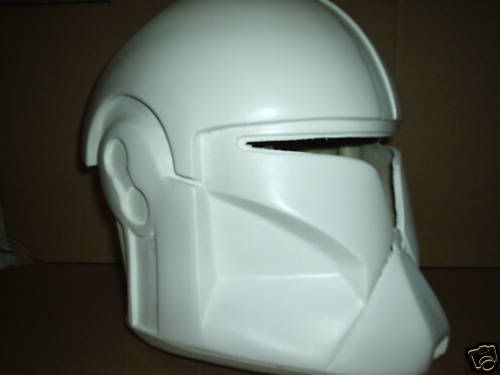

original lid
Posted Image
Posted Image

things wrong -
1. the dome detail is actually raised, not just a painted feature
2. ear recess is too deep and wrong shape
3. recess back of the dome too small
4. no ear greebs
5. no chest box and associated greebs
6. no decals

we in the UK deserve better than poor recasts and expensive US props with the added postage and import tax. Plan - to make a more accurate clone pilot helmet available at a reasonable price

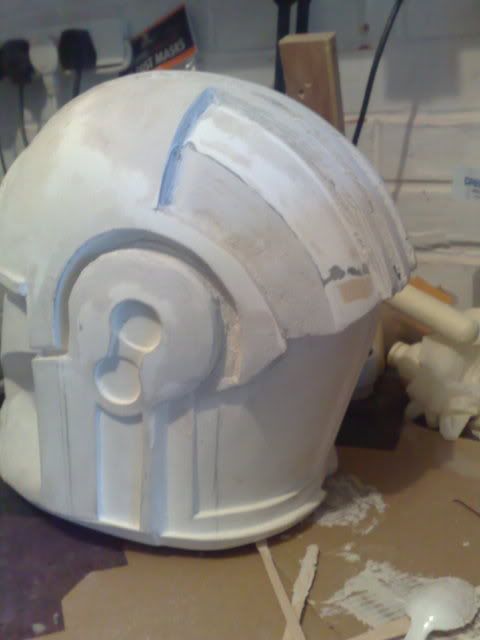

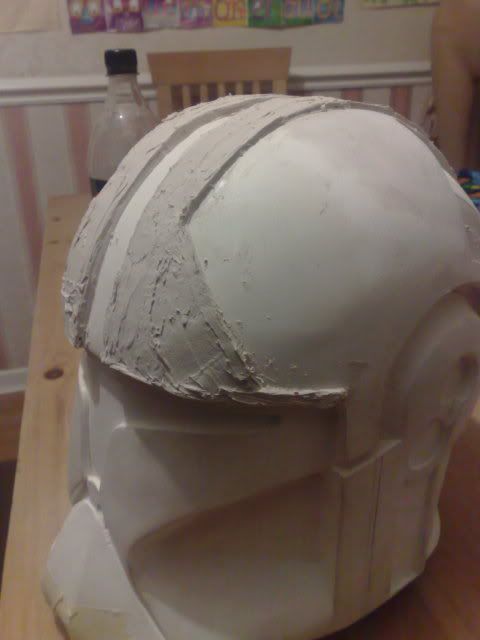

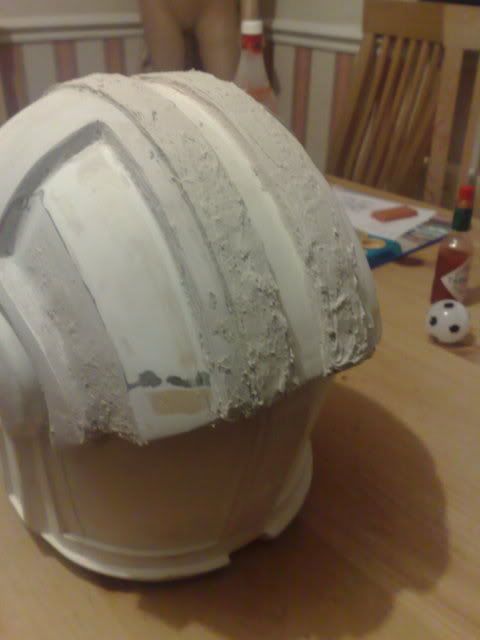

built up dome detail built with cardboard and car filler
Posted Image
Posted Image


cut and re-shaped the recesses area
Posted Image

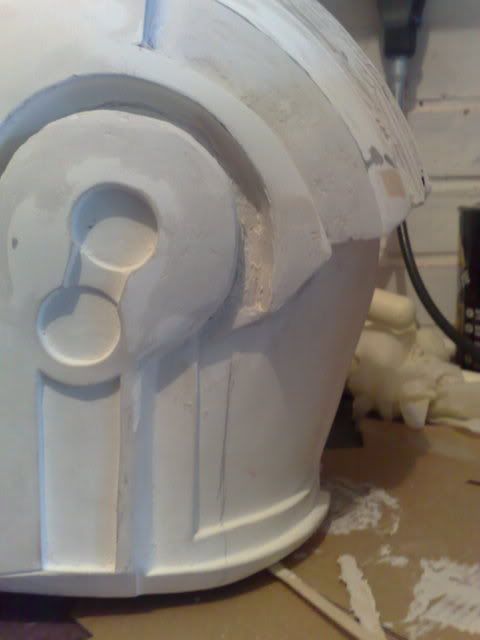

narrowed the ear recessed area and built a nice ear shape and ear tail
Posted Image
Offline Profile Quote Post Goto Top

heatshock Sep 12 2011, 12:22 AM Post #2
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011

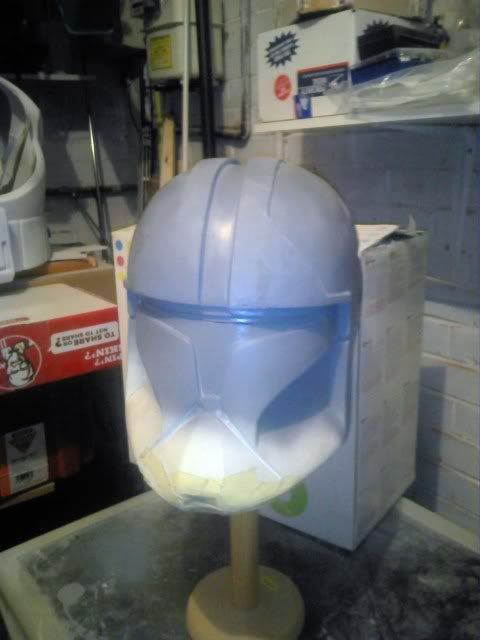

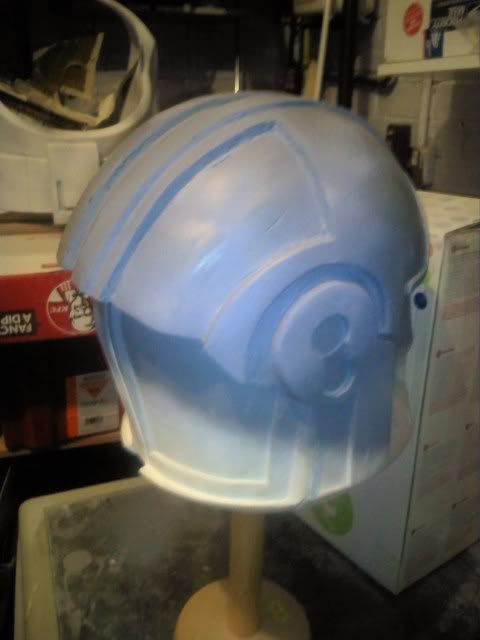

smooth and priming - repeat blah blah blah

Posted Image

Posted Image

Posted Image

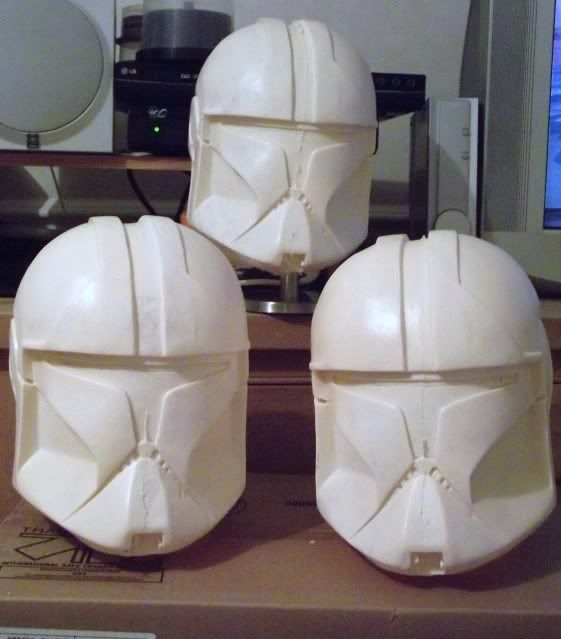

then the same old story of molding and casting like in my other similar threads
Posted Image

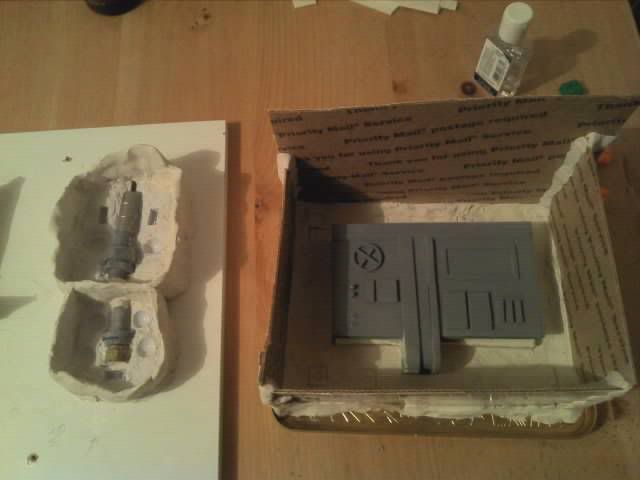

2 part split mold with FG jacket
Posted Image

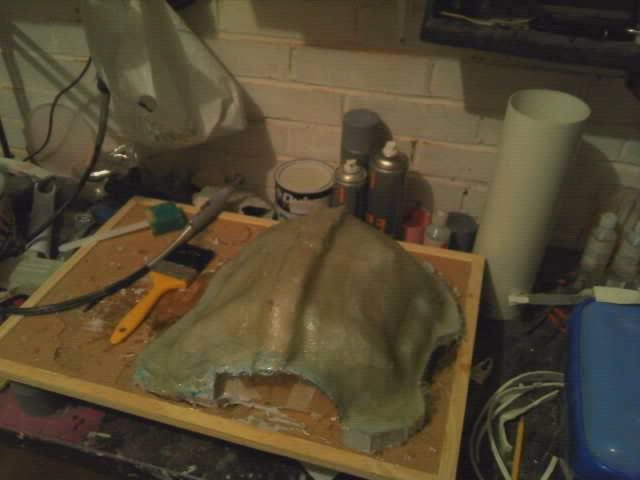

cast from polyurethane resin with FG hollow bubbles reinforcement
Posted Image


Offline Profile Quote Post Goto Top

heatshock Sep 12 2011, 12:25 AM Post #3
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
greeb search - successful!!

Posted Image

Posted Image

building a chest box from an old cigar box and bits of styrene
Posted Image

Posted Image

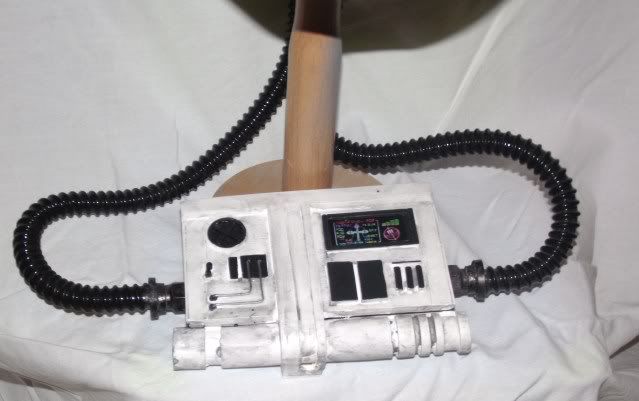

chest box connectors
Posted Image

weee silicone bath for all!!!

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

heatshock Sep 12 2011, 12:27 AM Post #4
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011

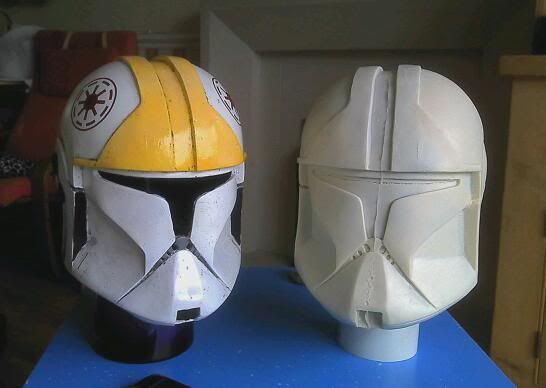

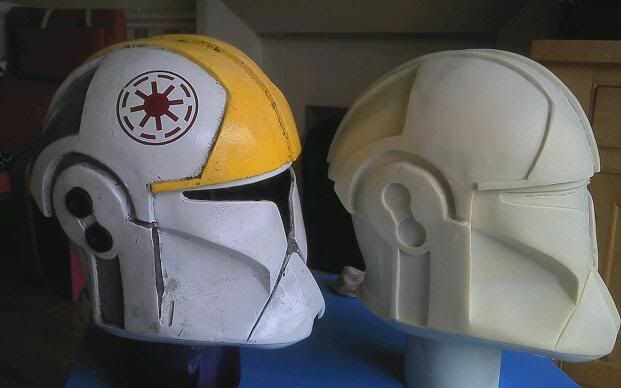

painted next to a raw cast
Posted Image

custom decals from my mate tk4510/mike appling
Posted Image

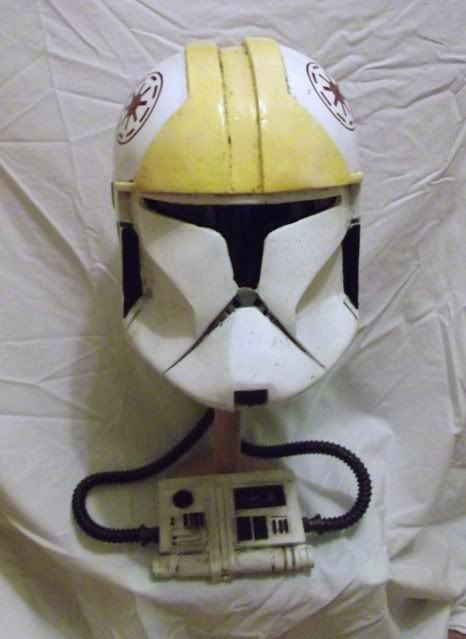

including the chest box window pic
Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

heatshock Sep 12 2011, 12:31 AM Post #5
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
thats it for version 1. Kits were supplied with the helmet, box, tubes, decals, lens and mesh.
If I were doing version 2 -what I would address:

1. have since found a small detail missing - 2 raised platforms at the back of the lid - 4 strips of 1/2round styrene strips should do. Easy fix for people who already have this kit.
2. solitary vent - build in so I dont have to mark on each kit goign out to owner to guide drilling out
3. get a nicer smoother shape to the recessed areas

Nate
