TOR Sith Acolyte
Tweet Topic Started: Jun 11 2012, 01:20 AM (941 Views)
heatshock Jun 11 2012, 01:20 AM Post #1
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
having been inspired by a good mate doing this costume, I wanted a cheaper, more personal version of this mask to play with.

for those not familiar with it - this is the mask I wanted to make - from the Old Republic MMORPG

Posted Image

Posted Image

there are at least 2 versions seen in the trailers, and many fans have done personal versions too. There are also 2 fan made masks already out there, both glorious, but are takes on the 1st mask above.

my idea was to make a generic smooth mask, with the elements of the mask built into it. So it would form a nice template for people to paint or build on further.

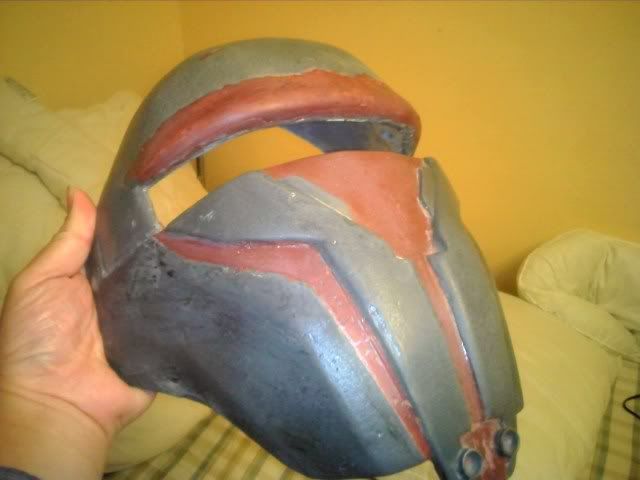

I started with a Revan mask I had in my collection. A 2nds pull and abandoned project from a while ago

Posted Image

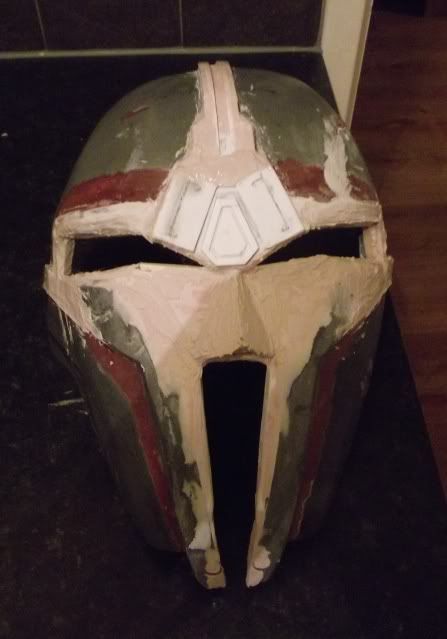

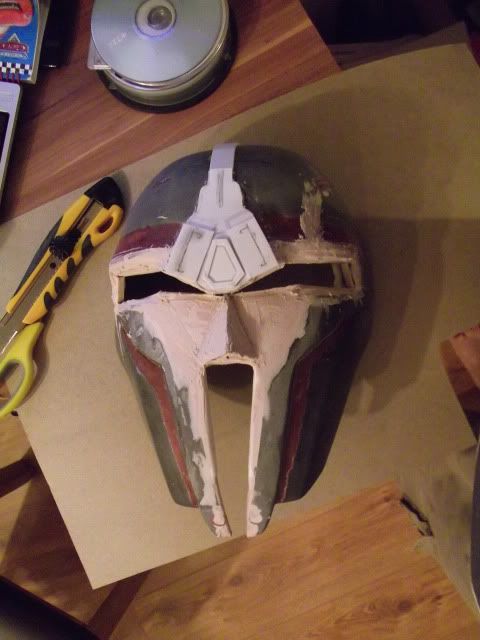

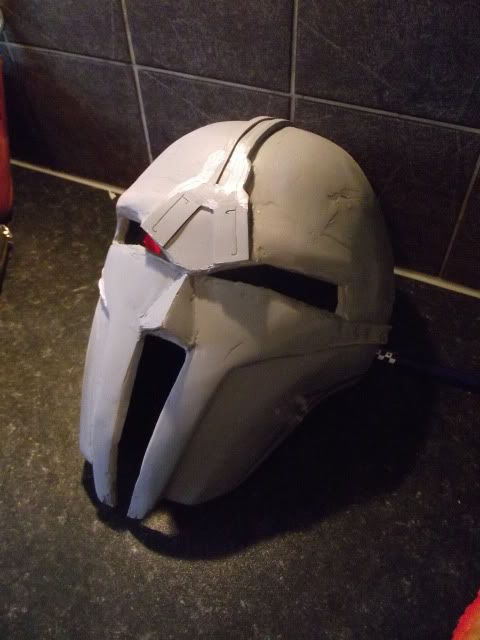

after abt 3 hours of dremelling, HIPS stripes, ice cream sticks and body filler later.....

Posted Image

a bit more general shaping

Posted Image

Posted Image

the plan is to mold these and make some budget casts available in the UK!

Nate
Offline Profile Quote Post Goto Top

TANGO'D FETT Jun 11 2012, 09:03 PM Post #2
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Nice work Nate , what materials are you using on this project ?
Offline Profile Quote Post Goto Top

heatshock Jun 12 2012, 07:28 PM Post #3
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
Styrene strips and 1mm / 3 mm styrene sheets for detailing. Card body filler.
Oh and hard graft ;)
Offline Profile Quote Post Goto Top

TANGO'D FETT Jun 12 2012, 10:53 PM Post #4
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Oooh i can sympathise with the hard graft mate ,it usually involves sanding !
Offline Profile Quote Post Goto Top

heatshock Jun 13 2012, 12:24 AM Post #5
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
main reason is that although I have machines - I only get into the shop abt 10 pm when kids have gone to bed, so have to sand by hand :(

anyways - some basic sanding done

Posted Image

if it makes it to mold and casting - would Mr B consider doing a fancy paint up at the next Prop Display time you think? Id happily supply you one before the event so you can do clean up, priming etc ?
Edited by heatshock, Jun 13 2012, 12:25 AM.
Offline Profile Quote Post Goto Top

TANGO'D FETT Jun 13 2012, 02:01 PM Post #6
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Looking great so far Nate , yeah that would be a cool one to do as a workshop , sure he'll chime in soon :)
Offline Profile Quote Post Goto Top

TonyRB Jun 13 2012, 05:21 PM Post #7
Admin
[ *  *  * ]
Posts:
367
Group:
Admin
Member
#1
Joined:
June 14, 2010
Great work Nate, that would be cool to do as a workshop
Offline Profile Quote Post Goto Top

gbscout Jun 13 2012, 07:10 PM Post #8
Member
[ *  * ]
Posts:
20
Group:
Full Members
Member
#155
Joined:
April 6, 2012
Looks good chap. keep it up :)
Offline Profile Quote Post Goto Top

heatshock Sep 23 2012, 11:40 AM Post #9
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
nice catching up at NSC mate - next time I am down, I might do time at the table rather than troop me thinks; at least for 1 or the 2 days.

dredd was awesome! soz I missed to full put together!

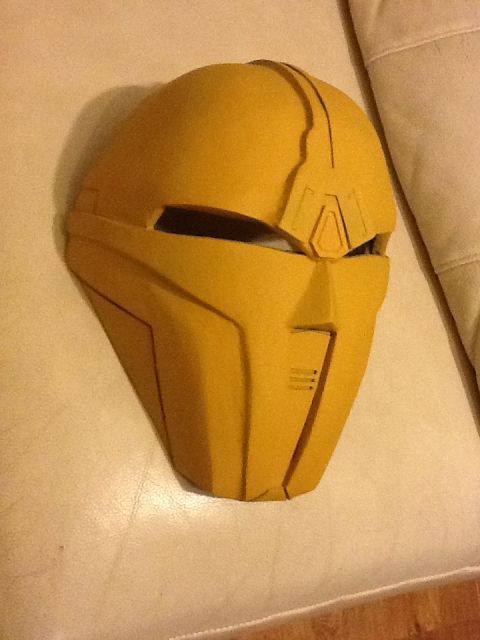

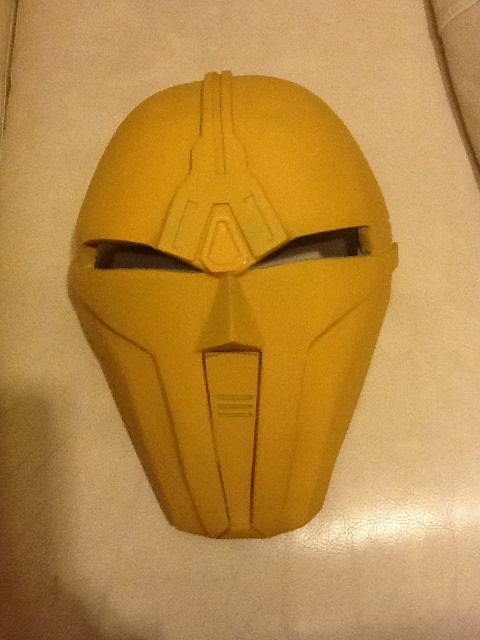

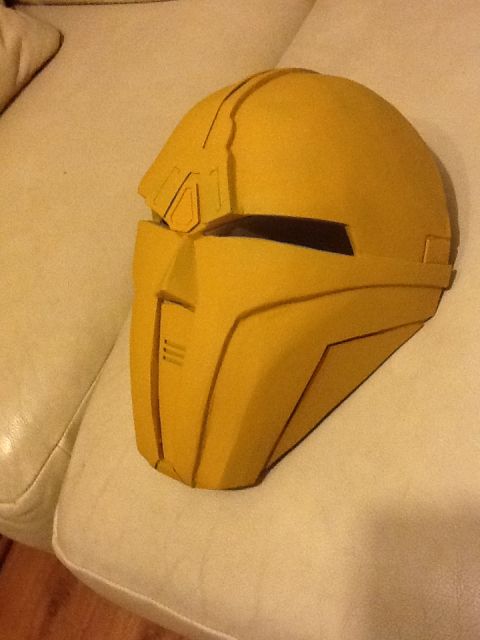

missed my deadline for the acolyte mask - but here it is as it stands, ready for silicone!

Posted Image

Posted Image

Posted Image

will bring the mold down next NSC mate
Offline Profile Quote Post Goto Top

maverick118 Sep 23 2012, 07:55 PM Post #10
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Looks great Nathan and great to cath up with you too, and a very big thank you for the lid too mate, I will be fitting the visor later...But the kids at the event loved it once i stck a bit of padding in there :-)
Offline Profile Quote Post Goto Top

heatshock Sep 24 2012, 01:00 AM Post #11
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
Cheers man, always lovely to catch up with u boys.
Bwahahaha, my insidious plan to slowly insert prequel sw props into the rpb prop table is working......
Edited by heatshock, Sep 24 2012, 10:20 PM.
Offline Profile Quote Post Goto Top

TonyRB Sep 24 2012, 10:51 AM Post #12
Admin
[ *  *  * ]
Posts:
367
Group:
Admin
Member
#1
Joined:
June 14, 2010
Nath you and your prequel props are always welcome on the RPB stand, great seeing you.
Offline Profile Quote Post Goto Top

TANGO'D FETT Sep 24 2012, 09:00 PM Post #13
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Those were prequel props !!!! .........

Mate you be very welcome on the display anytime and all your cool stuff is much liked and appreciated .
Offline Profile Quote Post Goto Top

heatshock Sep 24 2012, 10:23 PM Post #14
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
actually - my original idea was to paint on the details, but once the base mask is done, I might do a built up version. What you think? Foam? Styrene?

any recommendations welcomed!

Nate
Offline Profile Quote Post Goto Top

maverick118 Sep 24 2012, 10:27 PM Post #15
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Styrene sheet? should be easy to form to the curves. and you can keep far sharper details than foam too
Offline Profile Quote Post Goto Top

judgewest Sep 26 2012, 11:07 AM Post #16
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
156
Group:
Moderator
Member
#144
Joined:
February 3, 2012
Well- That's absolutely fantastic mate. I have to admit- I have no idea who that character is- but it's so damn cool B) love it- great work :D
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 01:24 AM Post #17
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
heh - its from the new Star Wars Old Republic MMORPG

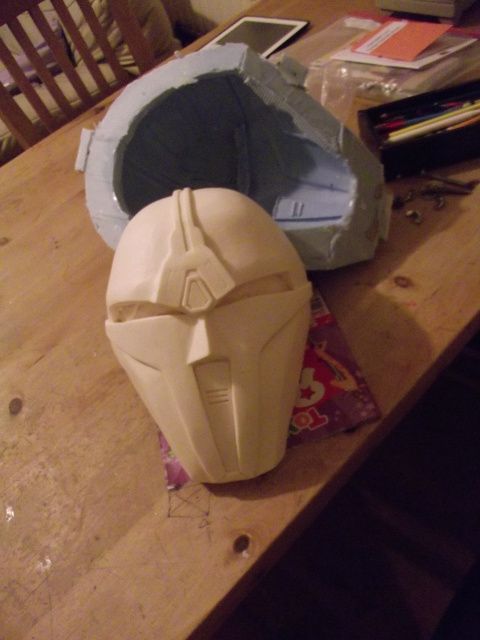

anyways - mold done and ready for the next RPB prop table
Posted Image

do you guys want castings to play with or me to bring the mold and do a casting demo? It only takes abt 500g of PU resin per mask

Nate
Offline Profile Quote Post Goto Top

maverick118 Sep 27 2012, 08:17 AM Post #18
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Ohhhh a demo would be most excellent mate :-) is that 500g pure resin? You could probably reduse the amount of resin by putting some aluminium trihydrate in the mix
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 06:22 PM Post #19
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
It's 150ml of resin each pour mixed w 3 tbs of aluminium trihydrate and 1 tbs of fibreglass microspheres. Then the slush done in 3 parts.

U think. Could used for filler?
Offline Profile Quote Post Goto Top

maverick118 Sep 27 2012, 07:15 PM Post #20
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
You can load resin up to 400% ally trihydrate. I often use it to bulk out urethane to make a brush able consitency for jackets to my silicone moulds
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 08:50 PM Post #21
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
Posted Image
Offline Profile Quote Post Goto Top

maverick118 Sep 27 2012, 09:09 PM Post #22
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
It's like making your own plastipaste and keeps the weight down. Just work quickly as it can kick and take you by surprise
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 11:00 PM Post #23
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011

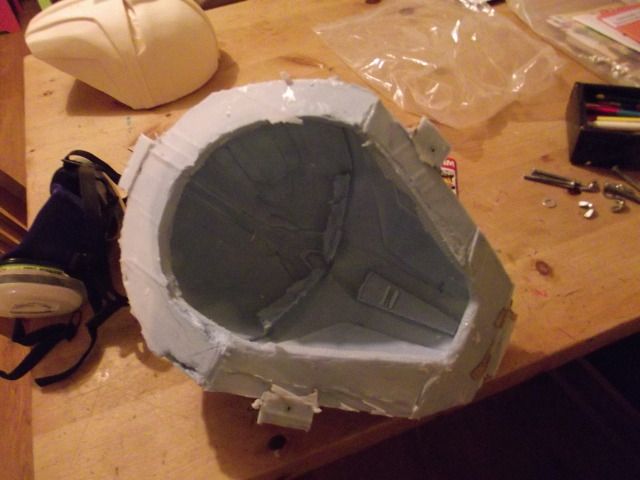

I is still old skool FG jackets ;P

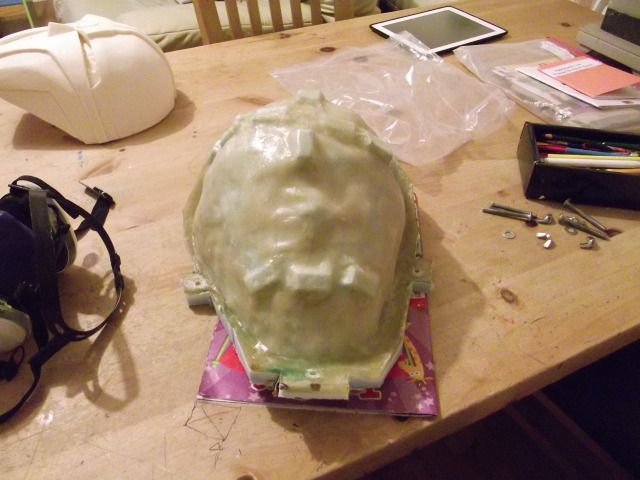

Posted Image

Posted Image

mold is easy to transport, but must give this higher mix filler a try - cheers mate

might be a nice demo with the vac forming - to show different methods of replicating

Offline Profile Quote Post Goto Top

maverick118 Sep 28 2012, 10:34 AM Post #24
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Do a detail coat first mate with no filler, just enough resin to coat the piece....The more ally tri H in the mix the slower is moves.
