New DREDD movie helmet
Tweet Topic Started: Sep 25 2012, 10:13 PM (1,138 Views)
maverick118 Sep 25 2012, 10:13 PM Post #1
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
As some of you now know we were as a group working on putting together as far as we are aware the first "screen"'ish accurate dredd costume from the new film...it was touch and go putting it together...My part was to build the Lid and the badge...So first up the lid

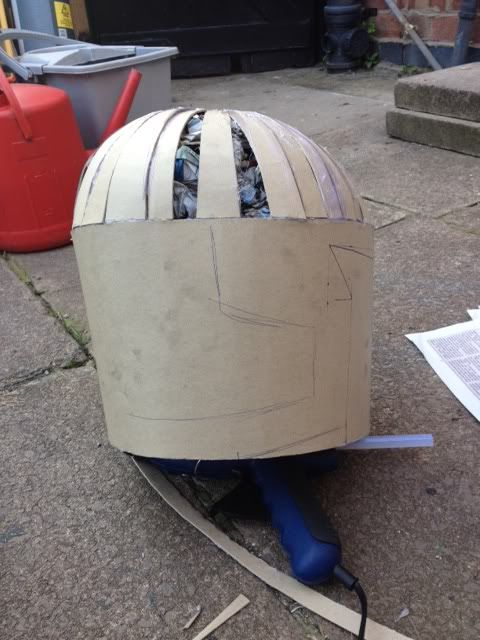

Which started out as

Posted Image

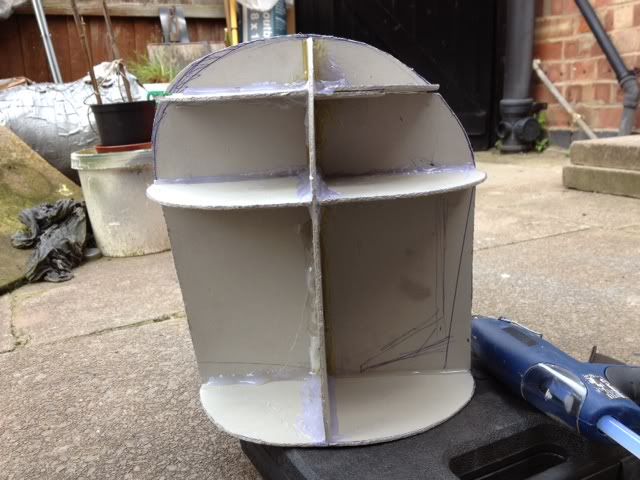

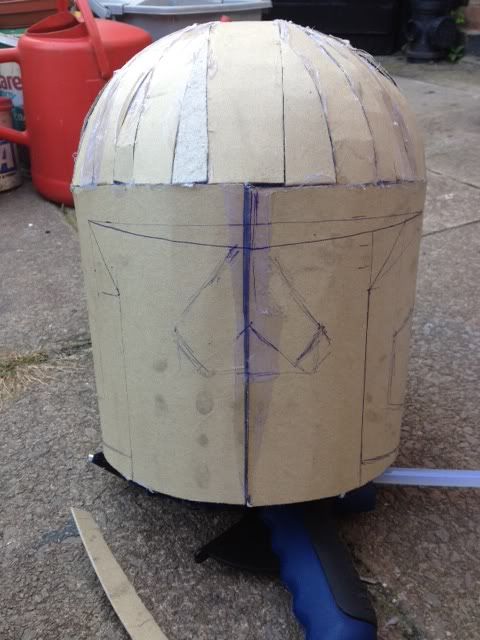

you guessed it card...my weapon of choice...why? cos I is skint and it's a really easy and fairly quick medium to work with.

Posted Image

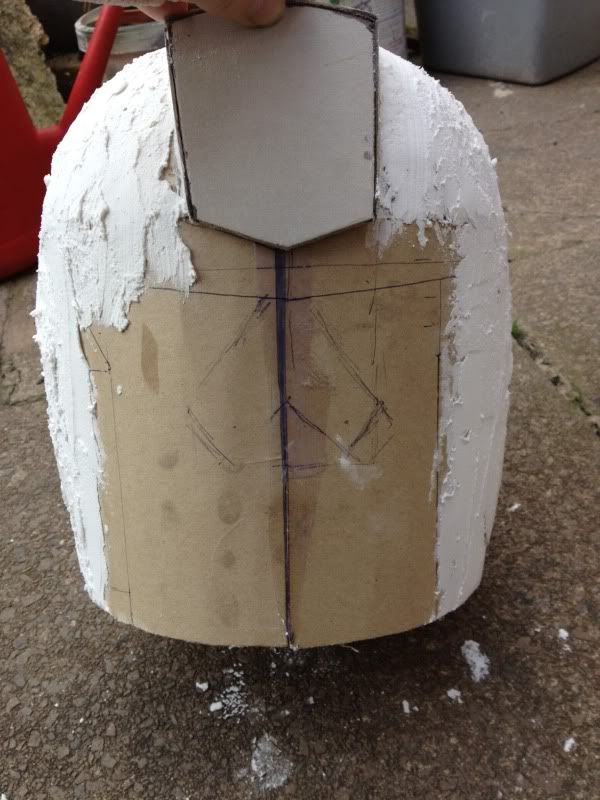

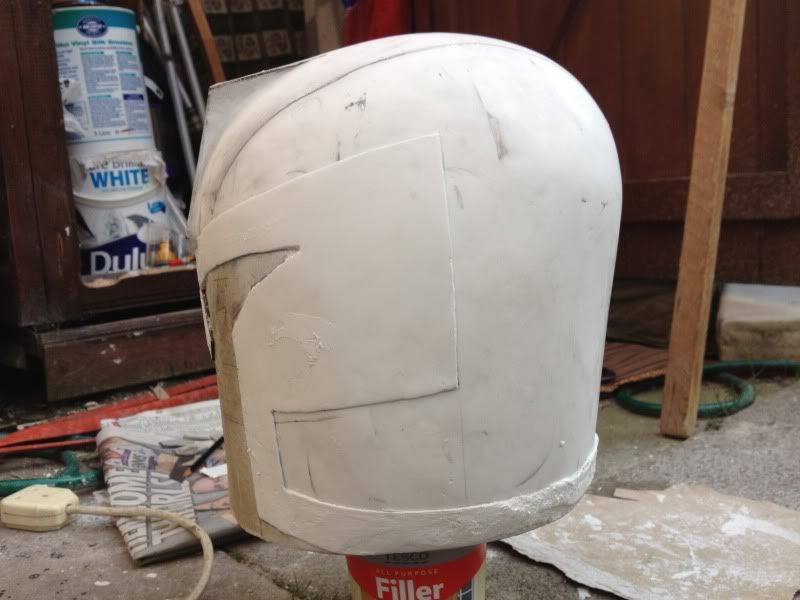

Skinned and looking reasonable

Posted Image

there it is with the dome complete.

The hardest part was not only going to be keeping the dome smooth but the fact that the sides aren't straight up and down...they have a gentle curve to them...So on when the polyfilla

Posted Image

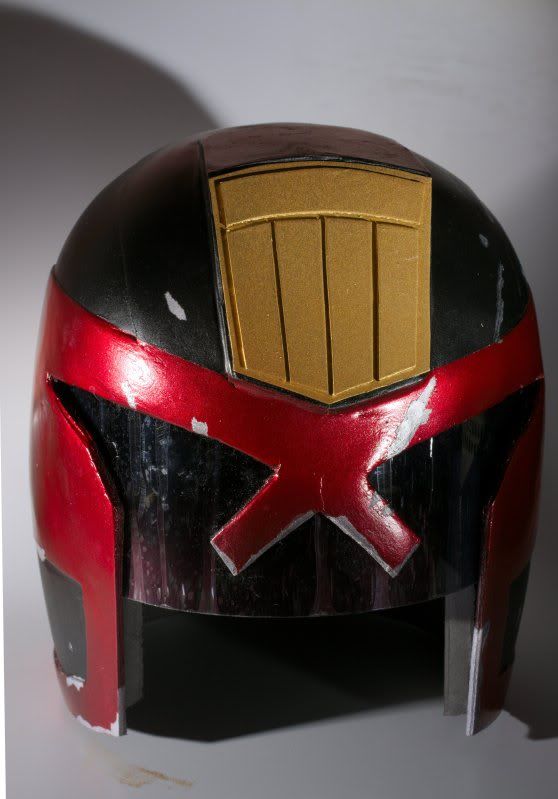

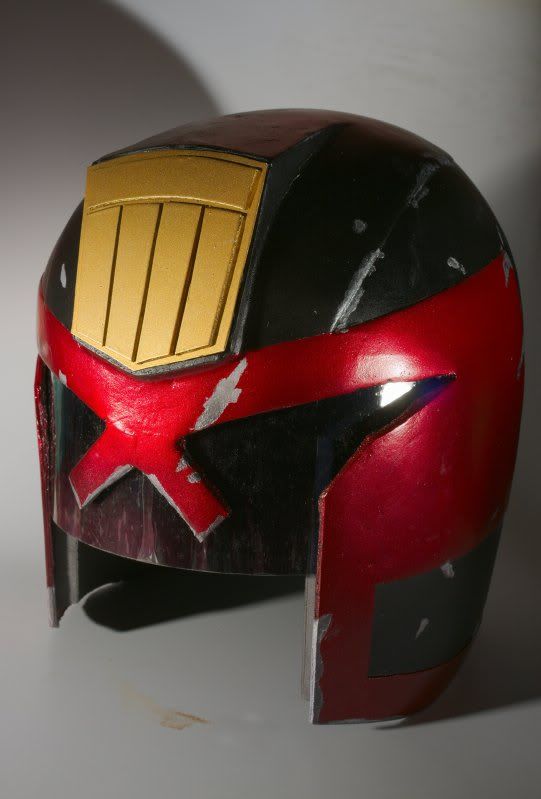

the end result looked not too shabby

Posted Image

Posted Image

Posted Image

;)
Offline Profile Quote Post Goto Top

TonyRB Sep 26 2012, 07:37 AM Post #2
Admin
[ *  *  * ]
Posts:
367
Group:
Admin
Member
#1
Joined:
June 14, 2010
Awesome work, I've seen this up close, amazing work Mav.
Offline Profile Quote Post Goto Top

ScareDeeKat Sep 26 2012, 03:22 PM Post #3
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
136
Group:
Full Members
Member
#6
Joined:
September 10, 2010
Looks awesome! hehee I love card too! My k-9 is made from card lol :D
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 01:21 AM Post #4
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
you cardboard nutter - nice finished product !

Nate
Offline Profile Quote Post Goto Top

maverick118 Sep 27 2012, 02:24 PM Post #5
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Cardboard nutter? I'll have you know I'm a fully fledged nutter ;-) cheers guys makes all the sleepless nights getting it ready for last weekend worth it :-) See Nate told you I was a proper Bo nutter
Offline Profile Quote Post Goto Top

heatshock Sep 27 2012, 06:24 PM Post #6
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
This is why I love this hobby, it's from the cardboard/car filler to the finished product progression that always gets me. Love it.
Offline Profile Quote Post Goto Top

maverick118 Oct 3 2012, 07:10 PM Post #7
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Well I've been working on "accurising" my helmet....it's not something I do often...but I thought I'd have a bash this time...the eyes on my lid <which i actually like with the wider flare> aren't screen accurate so I'll be filling part of the section in and then sanding and refining until they are....I've done a brief mock up too to see how it looks, then thought I'd have a see what the proportions are like with mine compared to the screen costume lid...

Posted Image

The only thing altered are the eye slits and the pic of my lid and chin scaled down...locked the aspect ratio so the proportion didn't alter....pretty chuffed that it's quite close to the original size and shape and actually sits better with the padding in place properly now.
Edited by maverick118, Oct 3 2012, 07:12 PM.
Offline Profile Quote Post Goto Top

heatshock Oct 3 2012, 09:46 PM Post #8
Advanced Member
[ *  *  * ]
Posts:
91
Group:
Full Members
Member
#45
Joined:
March 29, 2011
Lovely. Want want want

Mav, how did u guys get the ribbed leather look on the neck donut???
Edited by heatshock, Oct 3 2012, 09:55 PM.
Offline Profile Quote Post Goto Top

maverick118 Oct 3 2012, 10:29 PM Post #9
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
My lovely lady spent nearly two days making the ribbed section Nate its made from faux leather and a massive amount of piping mate
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 4 2012, 07:53 PM Post #10
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Awesome work again from the cardboard king , great job mate and can't wait to see it after the tweaks ...... Tweak .... Get it ........ ;p

This is gonna be one of the most accurate dredd lids out there mate , great job :)
Offline Profile Quote Post Goto Top

maverick118 Oct 8 2012, 07:23 PM Post #11
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
The good thging now that I've been tweaking is that what we saw originally on me as being a bit big...was simply down to rushing the helmet on and not ensuring the padding was straight...now the padding is sorted the lid no longer looks over sized for some one like myself who is only a couple inches shorter than Urban. I will have to sort out a smaller one mind though
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 8 2012, 08:35 PM Post #12
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Couple of inches shorter my arse ;) lol

Yeah mate , I was looking at the side on view pics yesterday and it looks spot on compared to a similar one of urban . I was also think it might need a bit of padding behind your head as well as in some pics it sits too far forward as well ?
Offline Profile Quote Post Goto Top

maverick118 Oct 8 2012, 08:52 PM Post #13
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
There's a full helmet liner in the lid mate so it's far more padded at the rear than it was
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 8 2012, 09:25 PM Post #14
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Nice one brother :)
Offline Profile Quote Post Goto Top

maverick118 Oct 14 2012, 12:33 PM Post #15
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Well as you may be aware I've been working on making this lid as screen accurate as I can...There were issues with the lid I wasn't always happy with down to the very small window of time i had to get it completed. So over the last couple of weeks I've been getting screen caps and measurements of the actual lid and transferring them to mine...The biggest issue with mine and I think most of the other builds out there is the fact we ignored the angles at the sides of the helmet....the fact that the base of the helmet if we held it straight up actually tapers to apoint at the sides hasn't been lost on me...that and the fact the respirator badge isn't flat too has meant some major reworking of the current build.

Posted Image

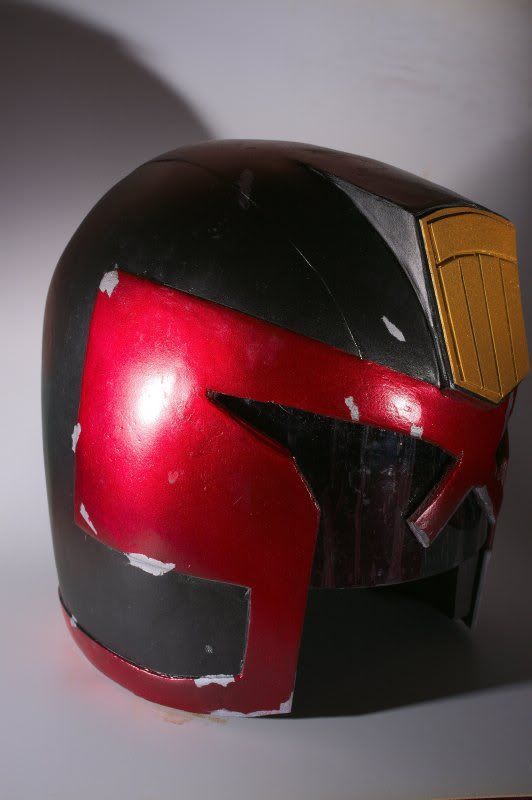

that's the original build...and whilst it looked good probably due to the lack of any real screen references it's not as accurate as it should be.

Posted Image

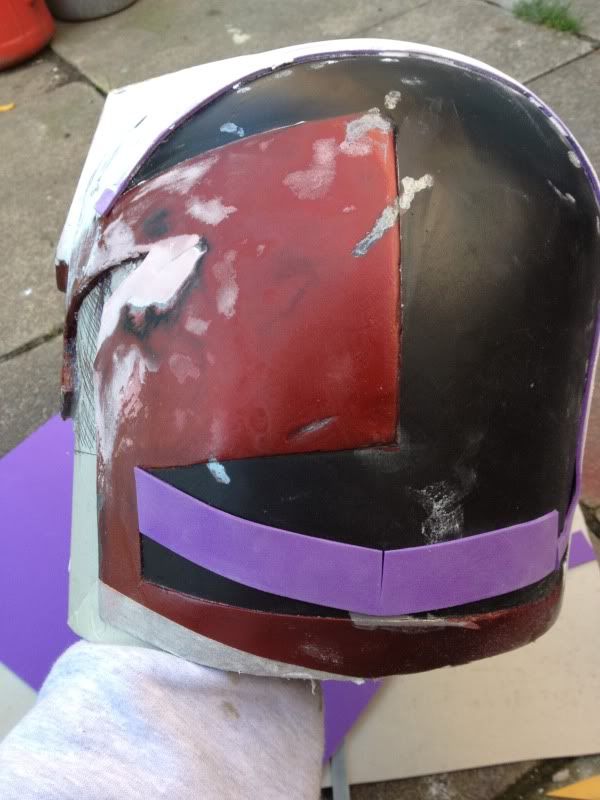

whilst the crappy iphone pic does it's best to distort things. you can actually see the new angles on the base now...I've reduced the height of both back and front of the helmet by a good amount...The other issue is concerning the nape of the neck...most people have made there's so it actually flat...having seen the back of the helmet properly on the B-roll footage...flat it ain't it's a very nice curve...stands to reason too as you have to move your head up and down whilst wearing a neck brace....so it's bound to be a nice curve

Posted Image

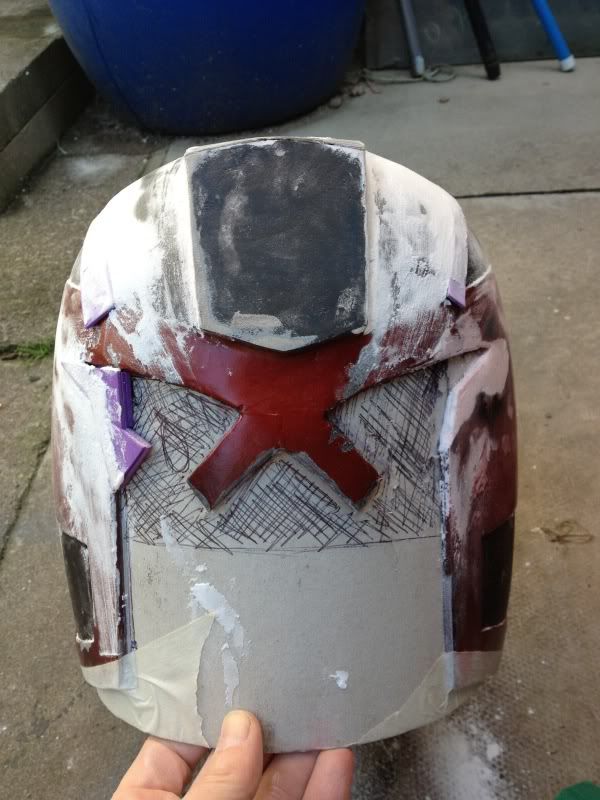

looks a bit rough at the moment but it's still going through the stages of being filled before refining takes place

Posted Image

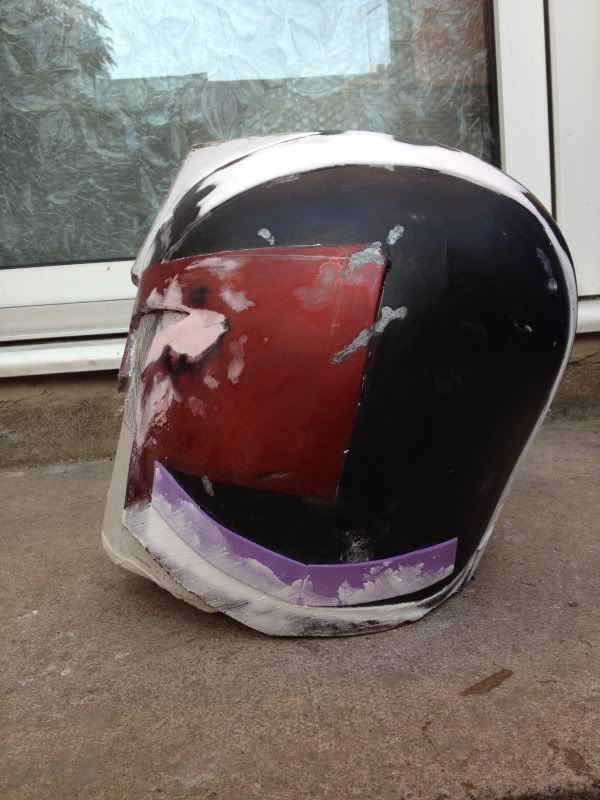

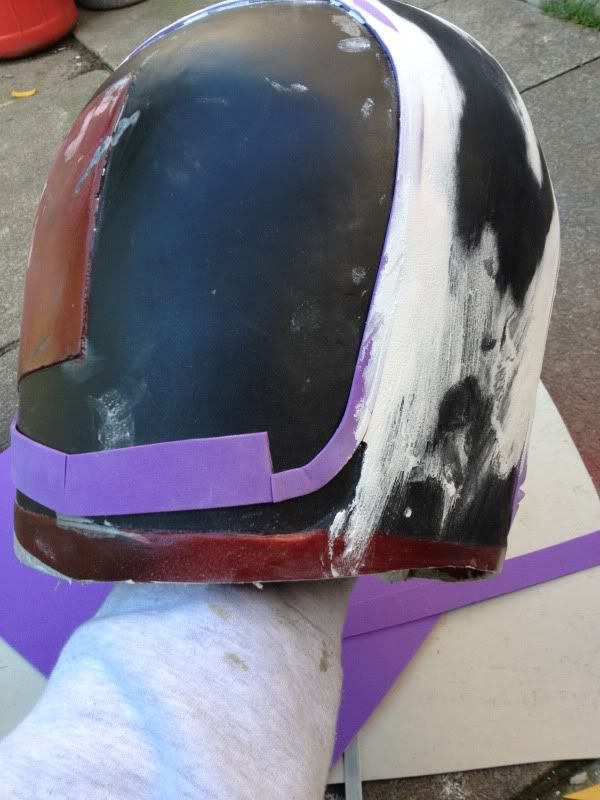

as you can see it sits back at a decent angle now, and having compared my lid with the actual one by overlaying the images I've surprised myself at how close I got it with just eyballing it

Posted Image

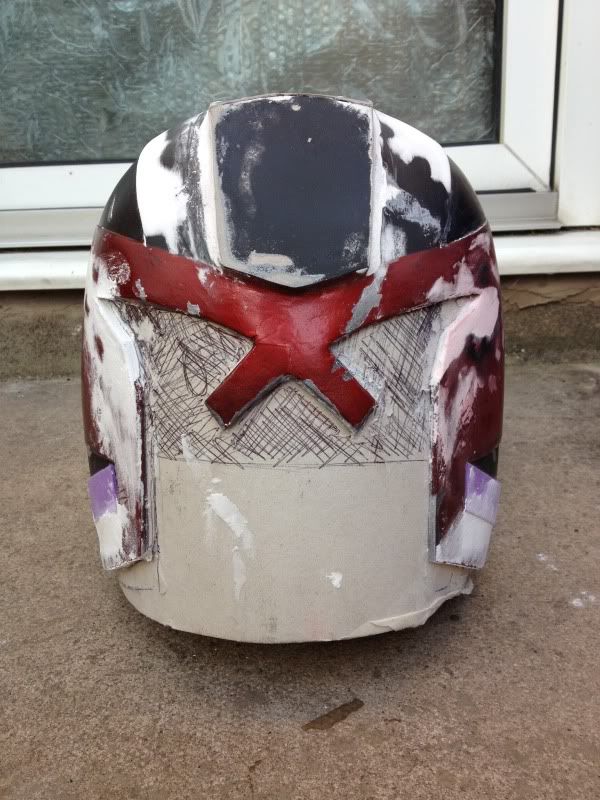

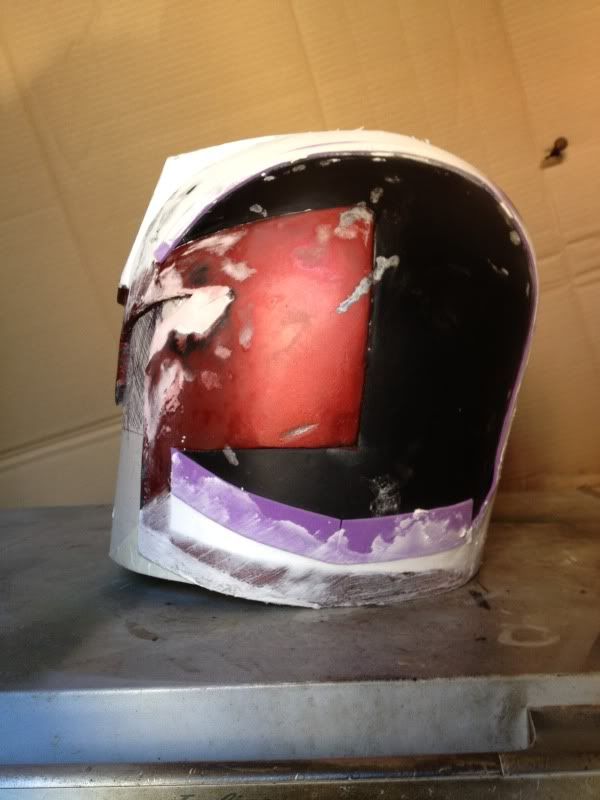

it may look a bit skewed here but that's due to one side of the card filling the void where the visor is being a little longer one side that the other

I've still to cut back and remove the filler from the front slant of the jawline but it's shaping up very well. :D
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 14 2012, 01:15 PM Post #16
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Looking much better now mate , so pleased you have gone for the tweaks we all mentioned , and looks like youve found some more B)
it'll be worth all the extra work in the end mate and will be possibly the most accurate out there :)
Offline Profile Quote Post Goto Top

maverick118 Oct 14 2012, 04:36 PM Post #17
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Well what a difference a couple of hours can make...working with the pics I've collected on my trusty tablet PC I set about the real hard work and that is removing the excess filler and the card. Having looked at the pics again and again i manged to crop the actual lid from on of the screen caps and superimposed it over one of my own...whilst I had been please at most of the angles I saw that the back was still a bit out so trimmed a bit more off and shaped it.

Posted Image

Posted Image

Posted Image

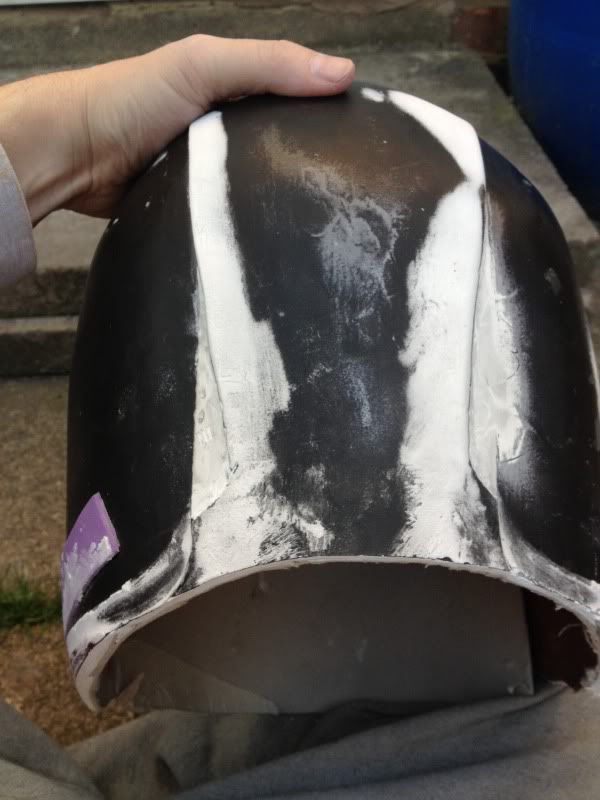

may not look like much difference but there's a shed load...it's now had a generous coat of filler and is drying off now...All in all I think the mods have made a huge difference...if we'd had all they screen caps etc a while ago there wouldn't be all this messing about now out in the cold :blink:
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 14 2012, 04:47 PM Post #18
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Ooh yeah mate that back looks awesome now :) looks just like the pic of the lid from the two crooked judges pic !
Offline Profile Quote Post Goto Top

maverick118 Oct 14 2012, 07:11 PM Post #19
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
It'll make for easier movement too when worn too...I had issues with the thing clattering into the back of my neck due to the padding slipping...I'm planning a decent foam padding accessory for this so it'll velcro into the lid with one pad for the done and one wrap around for the cheeks and back so should be nice and comfy
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 14 2012, 08:07 PM Post #20
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Yep padding will make a big difference mate , it's the key to getting it to sit right :)
Offline Profile Quote Post Goto Top

Quothcorvus Oct 17 2012, 11:22 AM Post #21
Member
[ *  * ]
Posts:
21
Group:
Full Members
Member
#80
Joined:
May 19, 2011
Hiya Martin, loving the helmet! As a matter of interest, when you make a mold using silicone and fibreglass jacket(?) for something like this, what sort of cost do you think the mold runs to in materials? Thanks!
Offline Profile Quote Post Goto Top

maverick118 Oct 17 2012, 02:26 PM Post #22
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Depends on the size of the item mate. but for this mould I can go two ways either cheaper tin sil 7025 a kilo kit is about 18 quid from mould life. Or use Plat Gel 10....As I've recently used the last of my tinsil I'll be going plat gel 10 a 2 kilo kit is 42 quid plus postage....but as I usually order a shed load of stuff in one go, the cost of carriage is negligible....Either method will see me only use about half a kilo. I'll not be using fibreglass for a jacket either. I make my own Plastipaste from easy flo resin. It's stronger and less prone to the cracking you get with some F/G moulds when you clamp them closed.
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 17 2012, 05:08 PM Post #23
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Be interested to see some pics of that , what do you put in the resin to make the paste mate ?
Offline Profile Quote Post Goto Top

Quothcorvus Oct 17 2012, 07:46 PM Post #24
Member
[ *  * ]
Posts:
21
Group:
Full Members
Member
#80
Joined:
May 19, 2011
Ok, thats great info, thank you- sorry to be a bit off-topic!
Offline Profile Quote Post Goto Top

maverick118 Oct 17 2012, 08:03 PM Post #25
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Steve I use ally trihydrate as I can load the resin a ton to get a brush able paste can do like 1 part resin 4 parts ally

Not off topic at all mate plus I dare say your looking at moulding you space marine
Offline Profile Quote Post Goto Top

TANGO'D FETT Oct 18 2012, 07:09 AM Post #26
Member Avatar
Administrator
[ *  *  * ]
Posts:
952
Group:
Admin
Member
#4
Joined:
July 3, 2010
Ah cheers mate ' I'll have get some and give that one a try :)

Moldlife do it ?
Offline Profile Quote Post Goto Top

maverick118 Oct 18 2012, 09:01 AM Post #27
Member Avatar
Advanced Member
[ *  *  * ]
Posts:
614
Group:
Admin
Member
#5
Joined:
July 3, 2010
Yes mate
Offline Profile Quote Post Goto Top

Quothcorvus Oct 18 2012, 11:14 AM Post #28
Member
[ *  * ]
Posts:
21
Group:
Full Members
Member
#80
Joined:
May 19, 2011
Ok, thanks Martin. Yup, was thinking of trying to mold the marine lid as and when its done. Thanks for the info
Offline Profile Quote Post Goto Top
